SKU: 61800-2RSR-MB

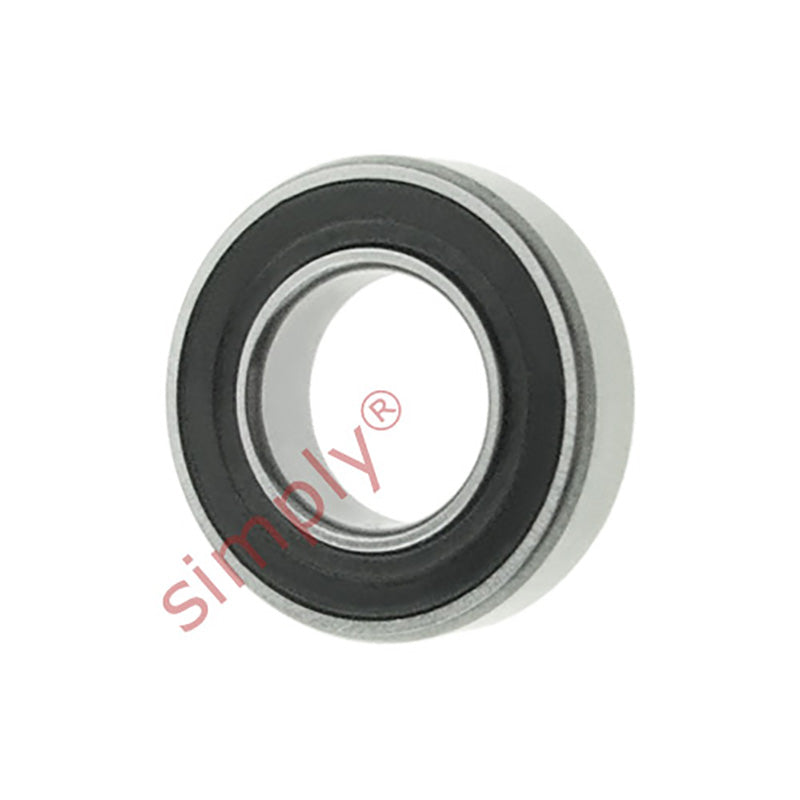

Major Branded 618002RSR Rubber Sealed Thin Deep Groove Ball Bearing 10x19x5mm
Equivalent to: 61800NSE 61800DU 61800RS 61800RSH 61800P 61800RSR 61800LU 6800NSE 6800DU 6800RS 6800RSH 6800P 6800RSR 6800LU 618002NSE 61800DDU 618002RS 618002RS1 618002RSH 61800PP 61800LLU 68002NSE 6800DDU 68002RS 68002RS1 68002RSH 6800PP 68002RSR 6800LLU
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 19mm
- Width:
- 5mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 10mm |
|---|---|
| D | 19mm |
| B | 5mm |
| Dynamic load C | 1.38 kN |
| Static load Co | 0.59 kN |
| Fatigue load limit Pu | 0.025 kN |
| Reference speed | 80000 rpm |
| Limiting speed | 22000 rpm |
| Mass | 0.0055 kg |
| d1 | 13mm |
| D2 | 19mm |
| r1r2 min | 0.3mm |
| da min | 12 |
