SKU: 61800-2Z-C3-FAG

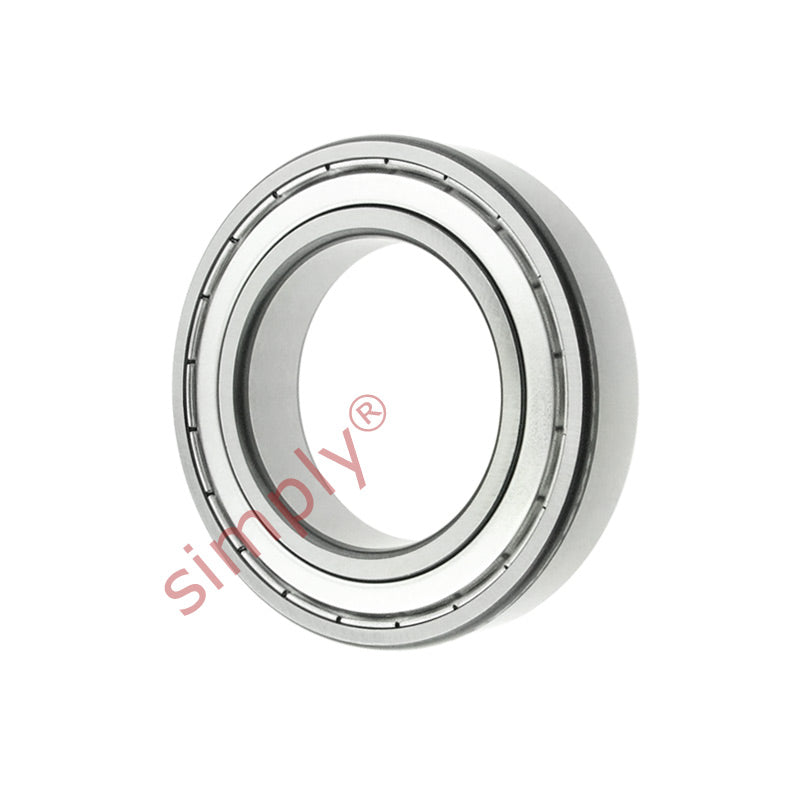

FAG 618002ZC3 Metal Shielded Thin Section Deep Groove Ball Bearing 10x19x5mm - Allow 2-3 Days
Equivalent to: 61800ZZEC3 61800ZZC3 61800.2ZC3 61800KDDC3 61800DDC3 618002ZRC3 61800FFC3 6800ZZEC3 6800ZZC3 68002ZC3 6800.2ZC3 6800KDDC3 6800DDC3 68002ZRC3 6800FFC3
Out of stock
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 19mm
- Width:
- 5mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 10mm |
|---|---|
| D | 19mm |
| B | 5mm |
| Dynamic load C | 1.38 kN |
| Static load Co | 0.59 kN |
| Fatigue load limit Pu | 0.025 kN |
| Reference speed | 80000 rpm |
| Limiting speed | 38000 rpm |
| Mass | 0.0055 kg |
| d2 | 11.8mm |
| D2 | 17.3mm |
| r1r2 min | 0.3mm |
| da min | 11.8 |
