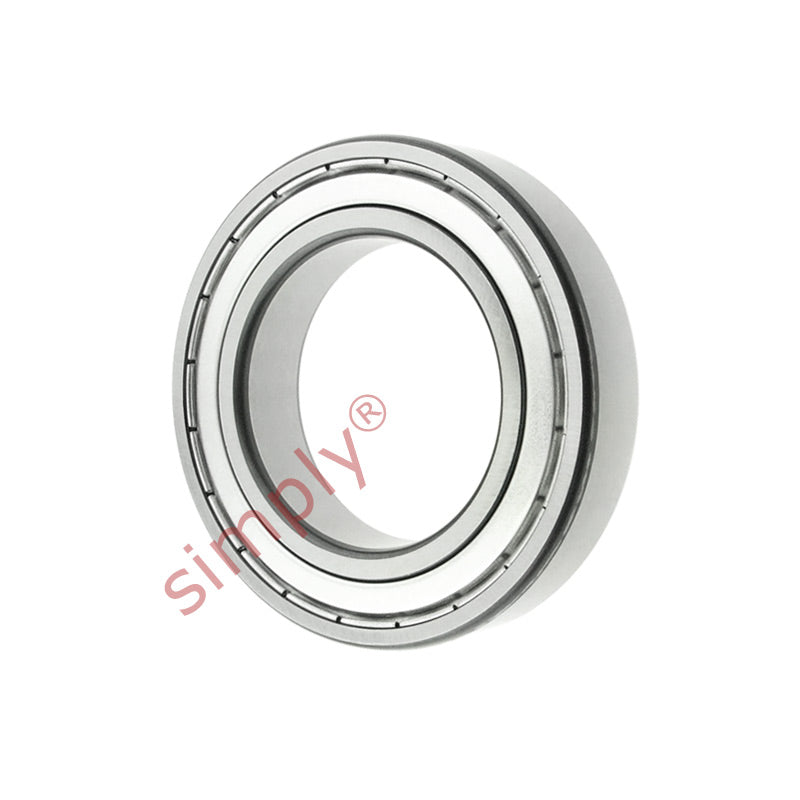

Codex 61801ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 12x21x5mm

SKU: 61801-ZZ-CDX

Codex 61801ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 12x21x5mm

$9.14 ex VAT
$9.14
ex VAT
Equivalent to: 61801ZZ 618012Z 618012ZR 61801ZZE 61801FF 61801DD 61801DDC 61801KDDC EL12ZZ EL122Z
In stock

Quantity Price Breaks

4 $8.13
10 $7.68
20 $7.59
30 $7.49
50 $7.40
75 $7.31
100 $6.86
200 $6.76
250 $6.67
500 $6.58
1000 $6.40
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Codex 61801ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 12x21x5mm
SKU: 61801-ZZ-CDX

Codex 61801ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 12x21x5mm

$9.14 ex VAT
$9.14
ex VAT

Description

Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that only require 1 shield
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost effective solution

Technical

d = 12mm
D = 21mm
B = 5mm
Dynamic Load = 1.43 kN
Static Load = 0.67 kN
Fatigue Load Limit Pu = 0.028
Reference Speed = 70000 rpm
Limiting Speed = 36000 rpm
Weight = 0.0063kg
d2 = 14.1mm
D2 = 19.1mm
r1r2 min = 0.3mm
da min = 14mm
da max = 14mm
Da max = 19mm
ra max = 0.3
Calc factor kr = 0.015
Calc factor Cor f0 = 9.7
