SKU: 61802-2RSR-MB

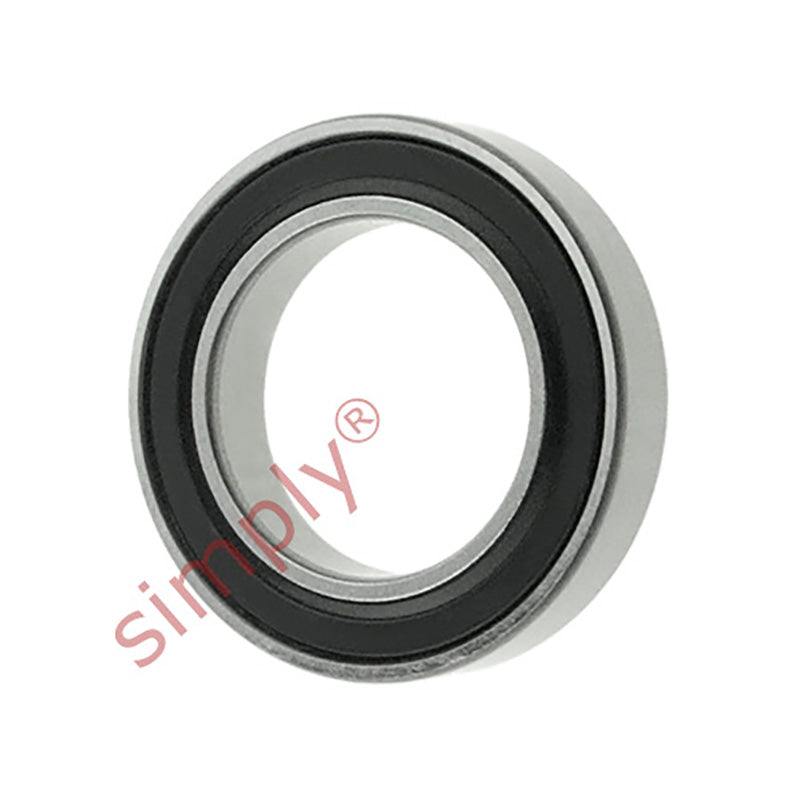

Major Branded 618022RSR Rubber Sealed Thin Deep Groove Ball Bearing 15x24x5mm
Equivalent to: 61802NSE 61802DU 61802RS 61802RSH 61802P 61802RSR 61802LU 6802NSE 6802DU 6802RS 6802RSH 6802P 6802RSR 6802LU 618022NSE 61802DDU 618022RS 618022RS1 618022RSH 61802PP 61802LLU 68022NSE 6802DDU 68022RS 68022RS1 68022RSH 6802PP 68022RSR 6802LLU
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 5mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 15mm |
|---|---|
| D | 24mm |
| B | 5mm |
| Dynamic load C | 1.56 kN |
| Static load Co | 0.8 kN |
| Fatigue load limit Pu | 0.034 kN |
| Reference speed | 60000 rpm |
| Limiting speed | 17000 rpm |
| Mass | 0.0074 kg |
| d1 | 17.9mm |
| D2 | 22.1mm |
| r1r2 min | 0.3mm |
| da min | 17 |
