SKU: 61802-2Z/C3-SKF

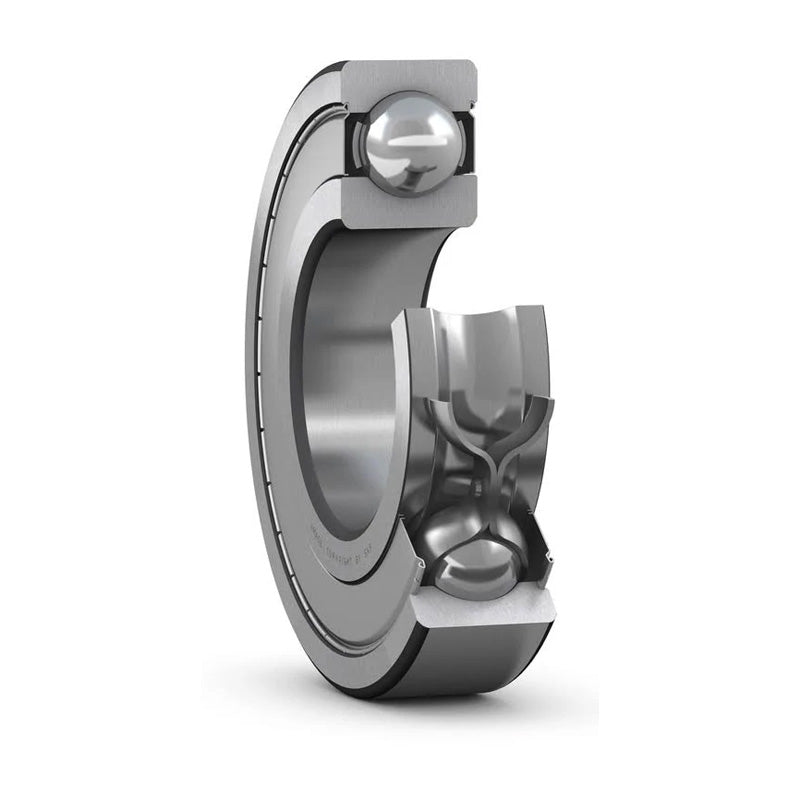

SKF 618022ZC3 Metal Shielded Thin Section Deep Groove Ball Bearing 15x24x5mm
Equivalent to: 61802ZZEC3 61802ZZC3 61802.2ZC3 61802KDDC3 61802DDC3 618022ZRC3 61802FFC3 6802ZZEC3 6802ZZC3 68022ZC3 6802.2ZC3 6802KDDC3 6802DDC3 68022ZRC3 6802FFC3
Out of stock
Share this product
Description
|
Metal Shielded Thin Section Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 5mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 15mm |
|---|---|
| D | 24mm |
| B | 5mm |
| Dynamic load C | 1.56 kN |
| Static load Co | 0.8 kN |
| Fatigue load limit Pu | 0.034 kN |
| Reference speed | 60000 rpm |
| Limiting speed | 30000 rpm |
| Weight | 0.0074 kg |
| d1 | 17.9mm |
| d2 | 0mm |
| D2 | 22.1mm |
| r1r2 min | 0.3mm |
| da min | 17mm |
| da max | 0mm |
| Da max | 22mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.015 |
| Calculation factor f0 | 10 |
