SKU: 61802-2Z-SKF

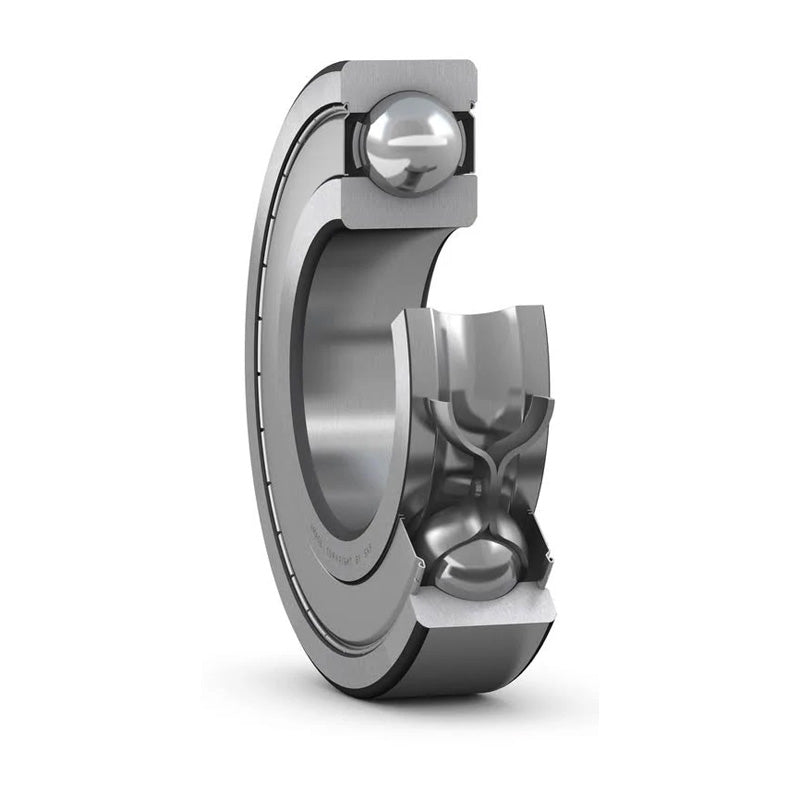

SKF 618022Z Metal Shielded Thin Section Deep Groove Ball Bearing 15x24x5mm
Equivalent to: 61802ZZE 61802ZZ 61802.2Z 61802KDD 61802DD 61802FF 6802ZZE 6802ZZ 68022Z 6802.2Z 6802KDD 6802DD 68022ZR 6802FF 618022ZR 61802.ZZ 618022Z 61802ZZ
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Thin Section Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 5mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 15mm |
|---|---|
| D | 24mm |
| B | 5mm |
| Dynamic load C | 1.56 kN |
| Static load Co | 0.8 kN |
| Fatigue load limit Pu | 0.034 kN |
| Reference speed | 60000 rpm |
| Limiting speed | 30000 rpm |
| Weight | 0.0074 kg |
| d1 | 17.9mm |
| d2 | 0mm |
| D2 | 22.1mm |
| r1r2 min | 0.3mm |
| da min | 17mm |
| da max | 0mm |
| Da max | 22mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.015 |
| Calculation factor f0 | 10 |
