SKU: 61803-2RS-CDX

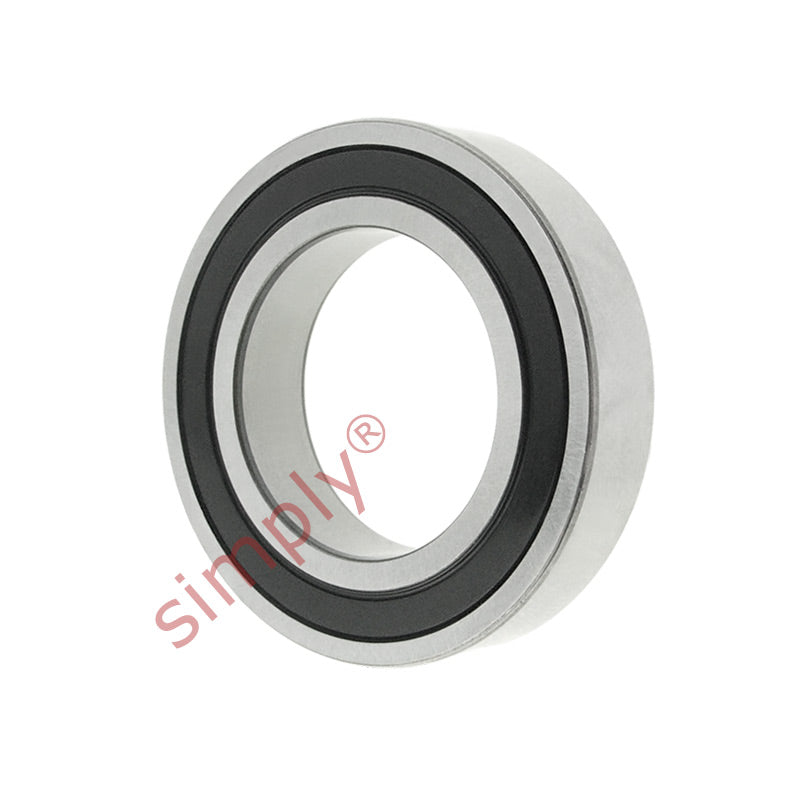

Codex 618032RS Rubber Sealed Thin Section Deep Groove Ball Bearing 17x26x5mm
- Regular price
- $9.10 ex VAT
- Sale price
- $9.10
- Regular price
-
In stock
Quantity Price Breaks
4
$8.10
10
$7.64
20
$7.55
30
$7.46
50
$7.37
75
$7.28
100
$6.83
200
$6.73
250
$6.64
500
$6.55
1000
$6.37
SKU:
61803-2RS-CDX
Codex 618032RS Rubber Sealed Thin Section Deep Groove Ball Bearing 17x26x5mm
- Regular price
- $9.10 ex VAT
- Sale price
- $9.10
- Regular price
-
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Technical
| d | = | 17mm |
| D | = | 26mm |
| B | = | 5mm |
| Dynamic Load | = | 1.68 kN |
| Static Load | = | 0.93 kN |
| Fatigue Load limit Pu | = | 0.039 |
| Reference Speed | = | 56000 rpm |
| Limiting speed | = | 16000 rpm |
| Weight | = | 0.164kg |
| d1 | = | -mm |
| D2 | = | 24.1mm |
| r1r2 | = | 0.3mm |
| da min | = | 19mm |
| Da max | = | 24mm |
| ra max | = | 0.3mm |
| Calc Factor kr | = | 0.015 |
| Calc Factor Cor f0 | = | 10 |
