SKU: 61803-2RS1-SKF

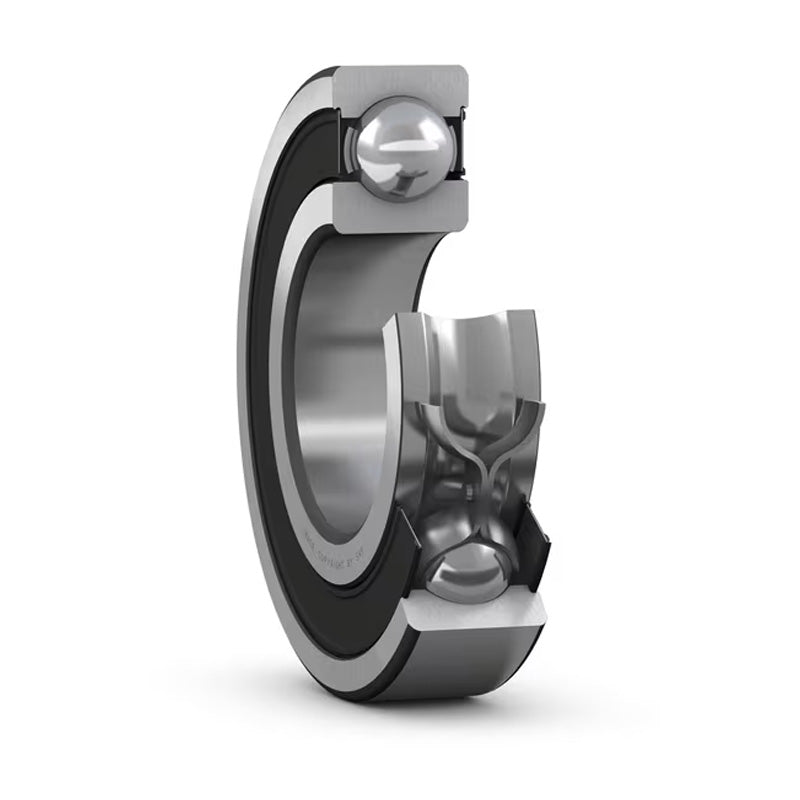

SKF 618032RS1 Rubber Sealed Thin Section Deep Groove Ball Bearing 17x26x5mm
Equivalent to: 61803NSE 61803DU 61803RS 61803RSH 61803P 61803RSR 61803LU 6803NSE 6803DU 6803RS 6803RSH 6803P 6803RSR 6803LU 618032NSE 61803DDU 618032RS 618032RSH 61803PP 618032RSR 61803LLU
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 26mm
- Width:
- 5mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 17mm |
|---|---|
| D | 26mm |
| B | 5mm |
| Dynamic load C | 1.68 kN |
| Static load Co | 0.93 kN |
| Fatigue load limit Pu | 0.039 kN |
| Reference speed | 56000 rpm |
| Limiting speed | 16000 rpm |
| Weight | 0.164 kg |
| d2 | 19.3mm |
| D2 | 24.1mm |
| r1r2 min | 0.3mm |
| da min | 19mm |
| da max | 19.2mm |
| Da max | 24mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.015 |
| Calculation factor f0 | 10 |
