• Major Branded 618032RSR Rubber Sealed Thin Deep Groove Ball Bearing 17x26x5mm
1 1

SKU: 61803-2RSR-MB

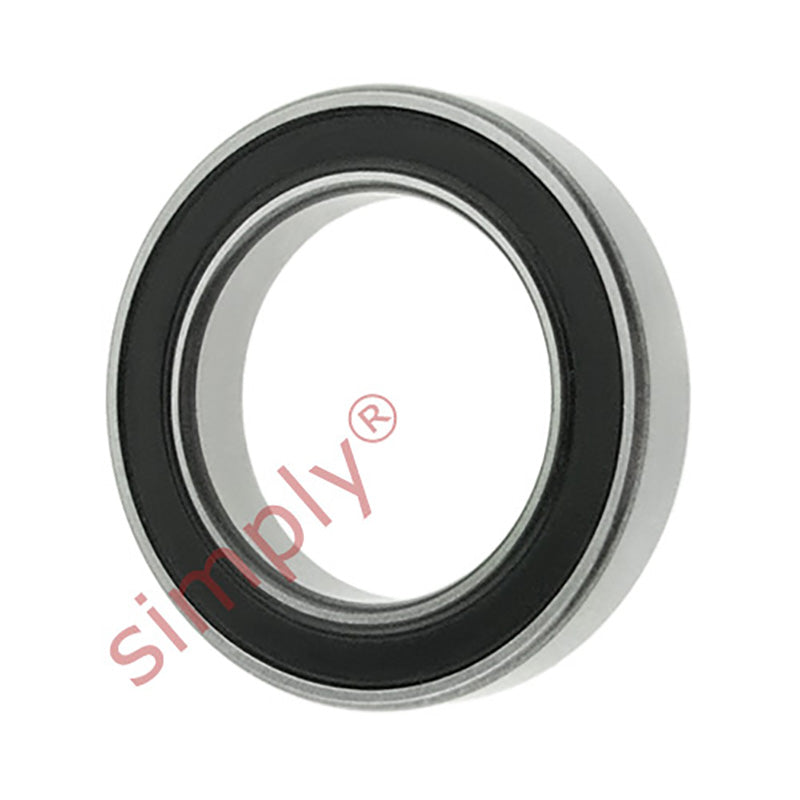

Major Branded 618032RSR Rubber Sealed Thin Deep Groove Ball Bearing 17x26x5mm

Major Branded 618032RSR Rubber Sealed Thin Deep Groove Ball Bearing 17x26x5mm
$20.83 ex VAT
$20.83 ex VAT
Sale Sold out

Equivalent to: 61803NSE 61803DU 61803RS 61803RSH 61803P 61803RSR 61803LU 6803NSE 6803DU 6803RS 6803RSH 6803P 6803RSR 6803LU 618032NSE 61803DDU 618032RS 618032RS1 618032RSH 61803PP 61803LLU 68032NSE 6803DDU 68032RS 68032RS1 68032RSH 6803PP 68032RSR 6803LLU

In stock

Price Break
10+ $13.96
19+ $13.17
29+ $13.02
39+ $12.86
49+ $12.70
74+ $12.55
99+ $11.76
199+ $11.60
249+ $11.45
499+ $11.29
999+ $10.98

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Brand / Quality:
Major Brand - High Quality
Inside Diameter:
17mm
Outside Diameter:
26mm
Width:
5mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 17mm
D 26mm
B 5mm
Dynamic load C 1.68 kN
Static load Co 0.93 kN
Fatigue load limit Pu 0.039 kN
Reference speed 56000 rpm
Limiting speed 16000 rpm
Mass 0.0082 kg
d2 19.3mm
D2 24.1mm
r1r2 min 0.3mm
da min 19
