SKU: 61803-MB

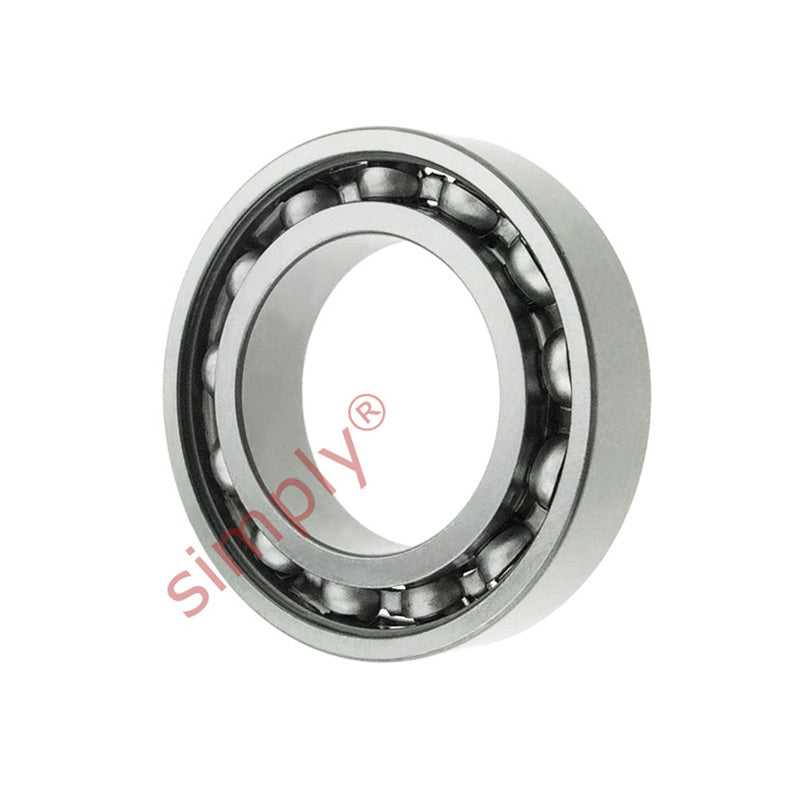

Major Branded 61803 Open Thin Section Deep Groove Ball Bearing 17x26x5mm
Major Branded 61803 Open Thin Section Deep Groove Ball Bearing 17x26x5mm
Regular price
$13.75
ex VAT
Regular price
Sale price
$13.75
ex VAT
Equivalent to: 6803
In stock
Price Break
10+
$9.21
19+
$8.69
29+
$8.59
39+
$8.48
49+
$8.38
74+
$8.28
99+
$7.76
199+
$7.66
249+
$7.55
499+
$7.45
999+
$7.24
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 26mm
- Width:
- 5mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 26mm |
| B | 5mm |
| Dynamic load C | 1.68 kN |
| Static load Co | 0.93 kN |
| Fatigue load limit Pu | 0.039 kN |
| Reference speed | 56000 rpm |
| Limiting speed | 34000 rpm |
| Mass | 0.0082 kg |
| d1 | 20.2mm |
| D1 | 23.2mm |
| r1r2 min | 0.3mm |
| da min | 19mm |
| Da max | 24mm |
| ra max | 0.3mm |
| Calc factor Kr | 0.015 |
| Calc factor | 10 |
