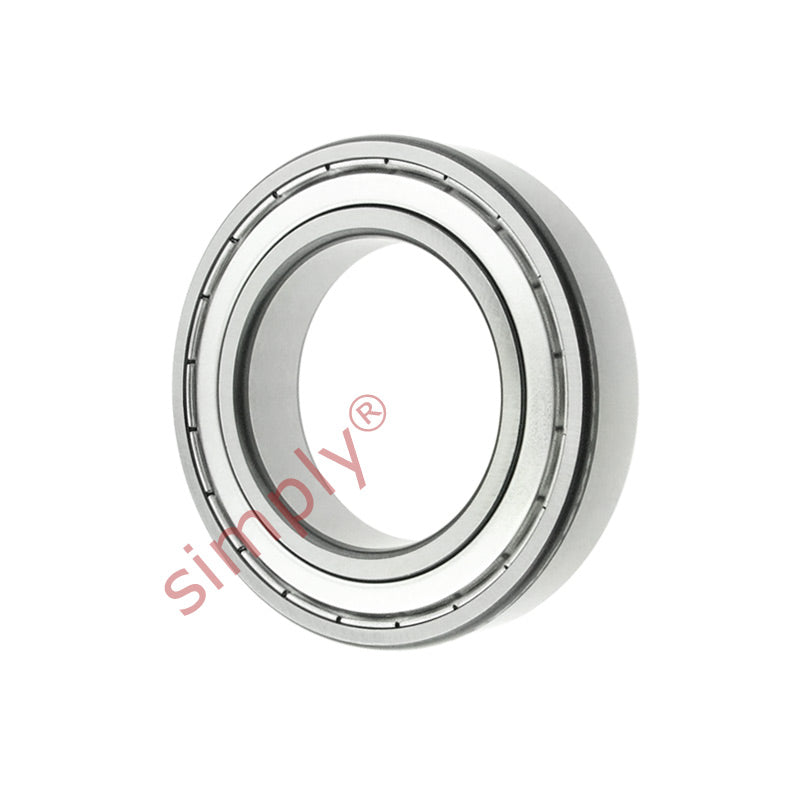

Codex 61803ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 17x26x5mm

SKU: 61803-ZZ-CDX

Codex 61803ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 17x26x5mm

$10.87 ex VAT
$10.87
ex VAT
Equivalent to: 61803ZZ 618032Z 618032ZR 61803ZZE 61803FF 61803DD 61803DDC 61803KDDC EL17ZZ EL172Z
In stock

Quantity Price Breaks

4 $9.67
10 $9.13
20 $9.02
30 $8.91
50 $8.80
75 $8.70
100 $8.15
200 $8.04
250 $7.94
500 $7.83
1000 $7.61
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Codex 61803ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 17x26x5mm
SKU: 61803-ZZ-CDX

Codex 61803ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 17x26x5mm

$10.87 ex VAT
$10.87
ex VAT

Description

Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that only require 1 shield
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost effective solution

Technical

d = 17mm
D = 26mm
B = 5mm
Dynamic Load = 1.68 kN
Static Load = 0.93 kN
Fatigue Load Limit Pu = 0.039
Reference Speed = 56000 rpm
Limiting Speed = 28000 rpm
Weight = 0.0082kg
d1 = 20.2mm
D2 = 24.1mm
r1r2 min = 0.3mm
da min = 19mm
Da max = 24mm
ra max = 0.3
Calc factor kr = 0.015
Calc factor Cor f0 = 10
