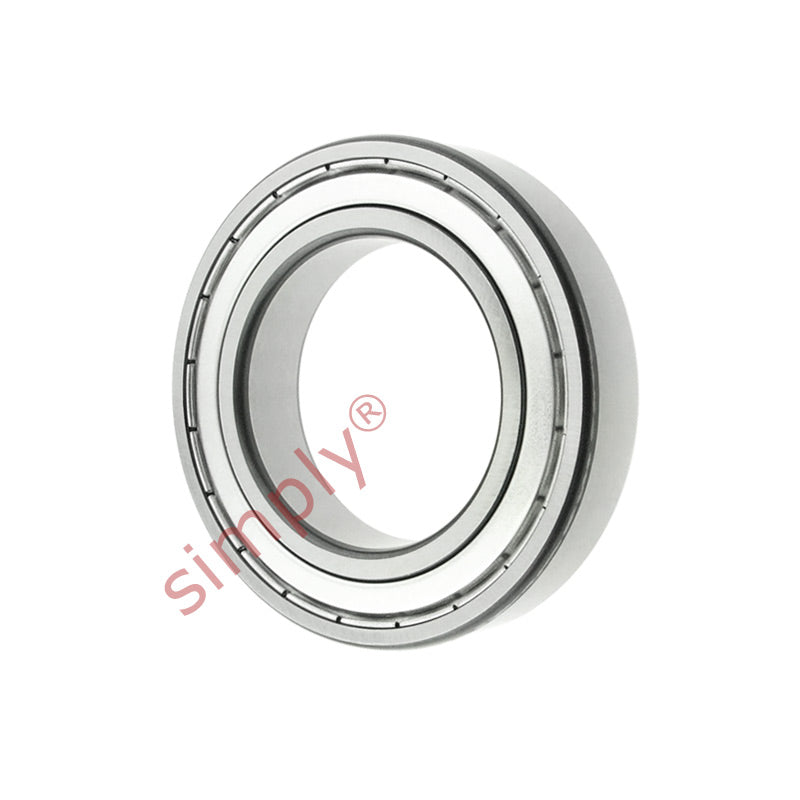

Codex 61808ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 40x52x7mm

SKU: 61808-ZZ-CDX

Codex 61808ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 40x52x7mm

$16.57 ex VAT
$16.57
ex VAT
Equivalent to: 61808ZZ 618082Z 618082ZR 61808ZZE 61808FF 61808DD 61808DDC 61808KDDC EL40ZZ EL402Z
In stock

Quantity Price Breaks

4 $14.75
10 $13.92
20 $13.75
30 $13.59
50 $13.42
75 $13.26
100 $12.43
200 $12.26
250 $12.10
500 $11.93
1000 $11.60
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Codex 61808ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 40x52x7mm
SKU: 61808-ZZ-CDX

Codex 61808ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 40x52x7mm

$16.57 ex VAT
$16.57
ex VAT

Description

Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that only require 1 shield
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost effective solution

Technical

d = 40mm
D = 52mm
B = 7mm
Dynamic Load = 4.94 kN
Static Load = 3.45 kN
Fatigue Load Limit Pu = 0.186
Reference Speed = 26000 rpm
Limiting Speed = 7500 rpm
Weight = 0.000034kg
d1 = -mm
D2 = 49.6mm
r1r2 min = 0.3mm
da min = 42mm
Da max = 50mm
ra max = 0.3
Calc factor kr = 0.015
Calc factor Cor f0 = 14
