SKU: 61809-2RSR-MB

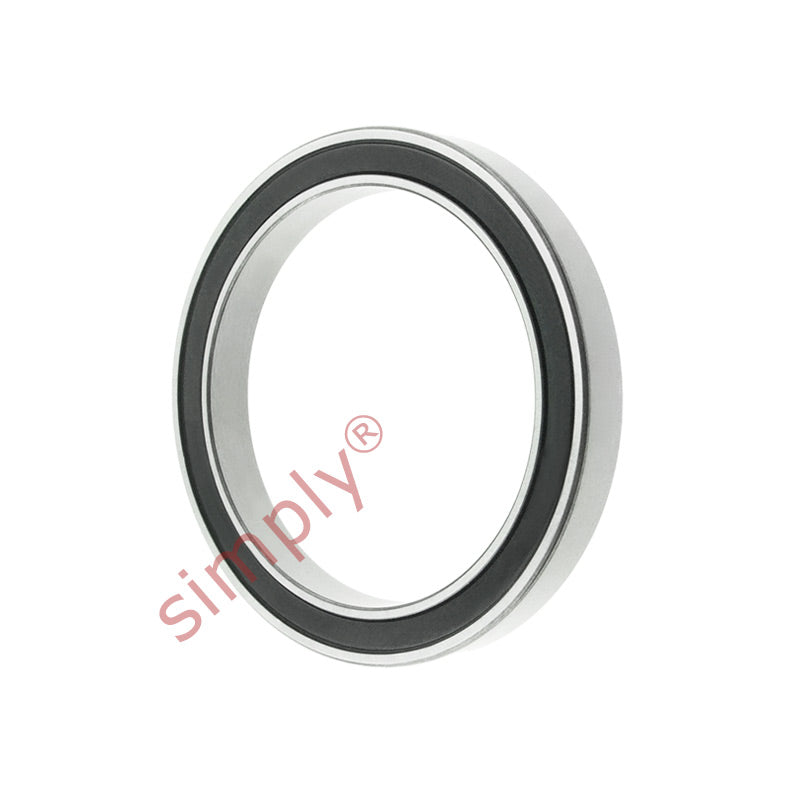

Major Branded 618092RSR Rubber Sealed Thin Deep Groove Ball Bearing 45x58x7mm
Equivalent to: 61809NSE 61809DU 61809RS 61809RSH 61809P 61809RSR 61809LU 6809NSE 6809DU 6809RS 6809RSH 6809P 6809RSR 6809LU 618092NSE 61809DDU 618092RS 618092RS1 618092RSH 61809PP 61809LLU 68092NSE 6809DDU 68092RS 68092RS1 68092RSH 6809PP 68092RSR 6809LLU
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 58mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 45mm |
|---|---|
| D | 58mm |
| B | 7mm |
| Dynamic load C | 6.63 kN |
| Static load Co | 6.1 kN |
| Fatigue load limit Pu | 0.26 kN |
| Reference speed | 22000 rpm |
| Limiting speed | 6700 rpm |
| Mass | 0.04 kg |
| d1 | 49.1mm |
| D2 | 55.4mm |
| r1r2 min | 0.3mm |
| da min | 47 |
