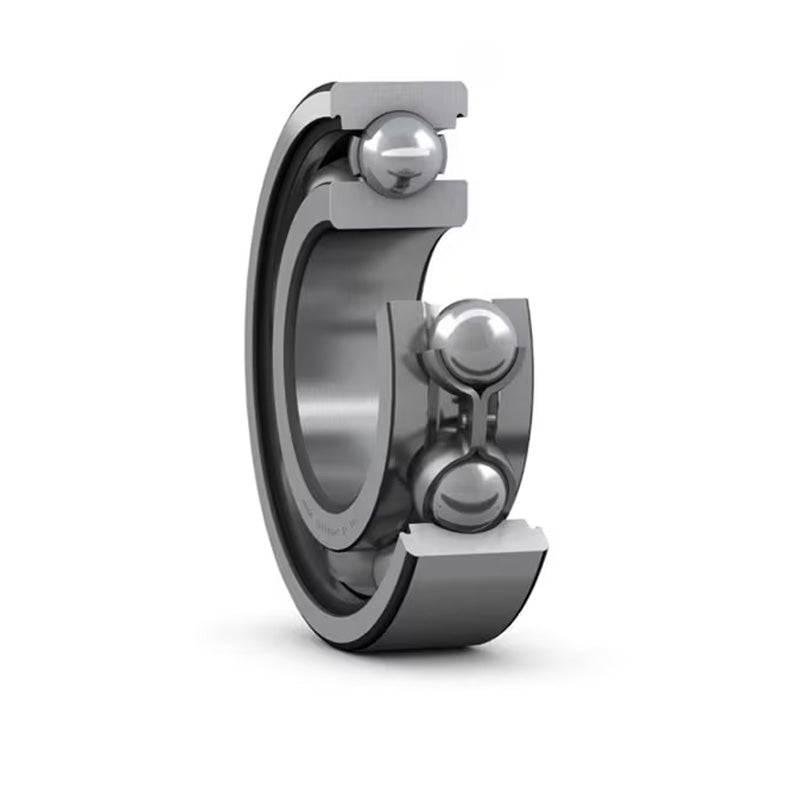

• SKF 61860MA Open Type Thin Section Deep Groove Ball Bearing 300x380x38mm
1 1

SKU: 61860MA-SKF

SKF 61860MA Open Type Thin Section Deep Groove Ball Bearing 300x380x38mm

SKF 61860MA Open Type Thin Section Deep Groove Ball Bearing 300x380x38mm
$2,778.05 ex VAT
$2,778.05 ex VAT
Sale Sold out

In stock

Price Break
4+ $1,860.82
10+ $1,756.28
20+ $1,735.37
30+ $1,714.46
50+ $1,693.55
75+ $1,672.64
100+ $1,568.10
200+ $1,547.20
250+ $1,526.29
500+ $1,505.38
1000+ $1,463.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost effective solution

Brand / Quality:
SKF - High Quality
Inside Diameter:
300mm
Outside Diameter:
380mm
Width:
38mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 300mm
D 380mm
B 38mm
Dynamic load 172 kN
Static load 245 kN
Fatigue load limit Pu 5.6 kN
Reference speed 3 200 rpm
Limiting speed 2 600 rpm
Weight 10.5 kg
d1 326mm
D1 354mm
D2 2.1mm
r1r2 min 309mm
da min 371mm
Da max 2mm
ra max 0.015mm
Calculation factor kr 17
Calculation factor Cor N/A
