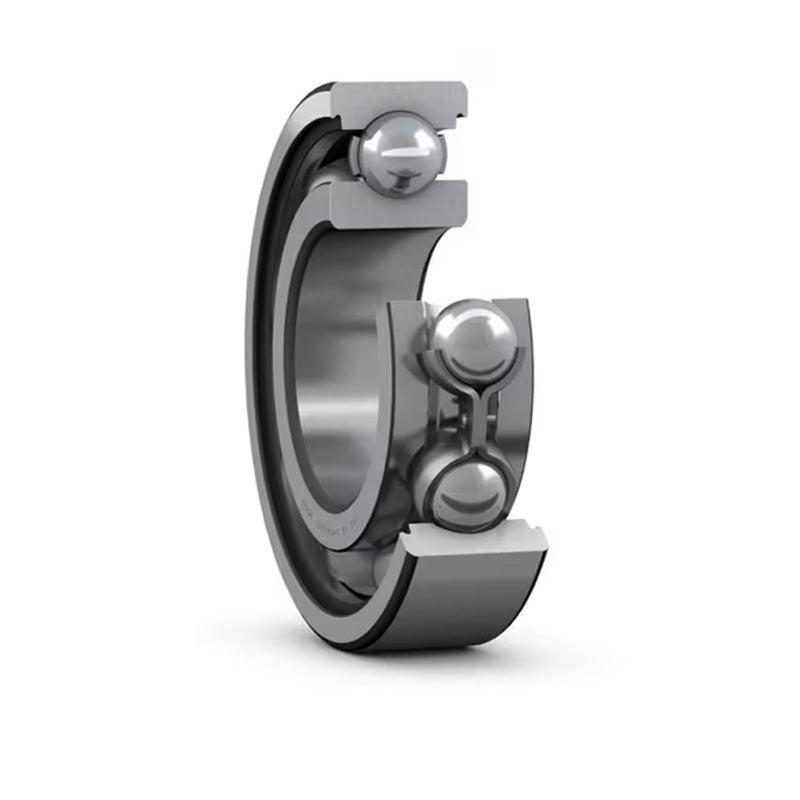

• SKF 61872MAC3 Open Type Thin Section Deep Groove Ball Bearing 360x440x38mm
1 1

SKU: 61872MA/C3-SKF

SKF 61872MAC3 Open Type Thin Section Deep Groove Ball Bearing 360x440x38mm

SKF 61872MAC3 Open Type Thin Section Deep Groove Ball Bearing 360x440x38mm
$3,988.26 ex VAT
$3,988.26 ex VAT
Sale Sold out

In stock

Price Break
4+ $2,671.45
10+ $2,521.37
20+ $2,491.35
30+ $2,461.34
50+ $2,431.32
75+ $2,401.30
100+ $2,251.22
200+ $2,221.21
250+ $2,191.19
500+ $2,161.17
1000+ $2,101.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost effective solution

Brand / Quality:
SKF - High Quality
Inside Diameter:
360mm
Outside Diameter:
440mm
Width:
38mm
Seals / Shields:
None
Clearance:
C3
Technical
d 360mm
D 440mm
B 38mm
Dynamic load 182 kN
Static load 285 kN
Fatigue load limit Pu 6.1 kN
Reference speed 2 600 rpm
Limiting speed 2 200 rpm
Weight 12 kg
d1 385mm
D1 416mm
D2 2.1mm
r1r2 min 372mm
da min 428mm
Da max 2mm
ra max 0.015mm
Calculation factor kr 17
Calculation factor Cor N/A
