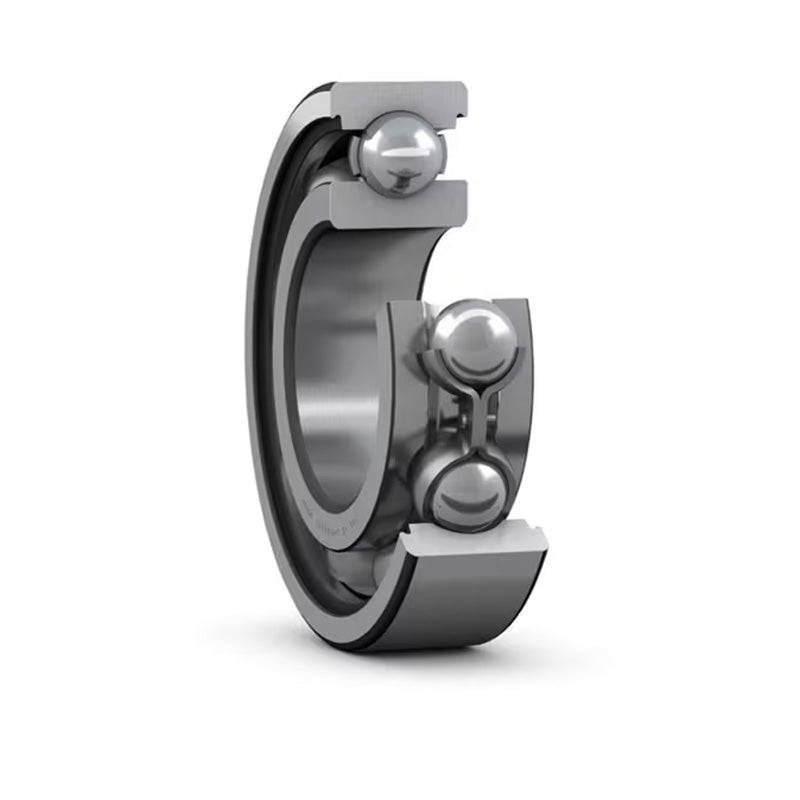

• SKF 61888MA Open Type Thin Section Deep Groove Ball Bearing 440x540x46mm
1 1

SKU: 61888MA-SKF

SKF 61888MA Open Type Thin Section Deep Groove Ball Bearing 440x540x46mm

SKF 61888MA Open Type Thin Section Deep Groove Ball Bearing 440x540x46mm
$9,655.57 ex VAT
$9,655.57 ex VAT
Sale Sold out

In stock

Price Break
4+ $6,903.60
10+ $6,830.93
20+ $6,758.26
30+ $6,685.59
50+ $6,540.25
75+ $6,394.91
100+ $6,249.58
200+ $6,104.24
250+ $5,886.23
500+ $5,668.22
1000+ $5,450.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost effective solution

Brand / Quality:
SKF - High Quality
Inside Diameter:
440mm
Outside Diameter:
540mm
Width:
46mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 440mm
D 540mm
B 46mm
Dynamic load 255 kN
Static load 440 kN
Fatigue load limit Pu 8.5 kN
Reference speed 2 200 rpm
Limiting speed 1800 rpm
Weight 22.5 kg
d1 472mm
D1 510mm
D2 2.1mm
r1r2 min 452mm
da min 528mm
Da max 2mm
ra max 0.015mm
Calculation factor kr 17
Calculation factor Cor N/A
