SKU: 619/8-MB

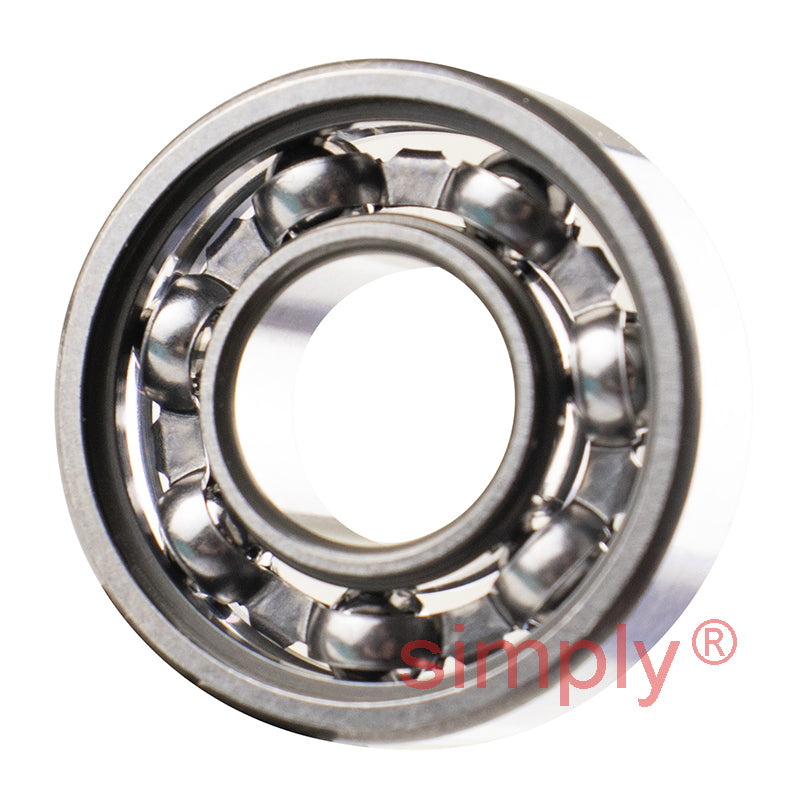

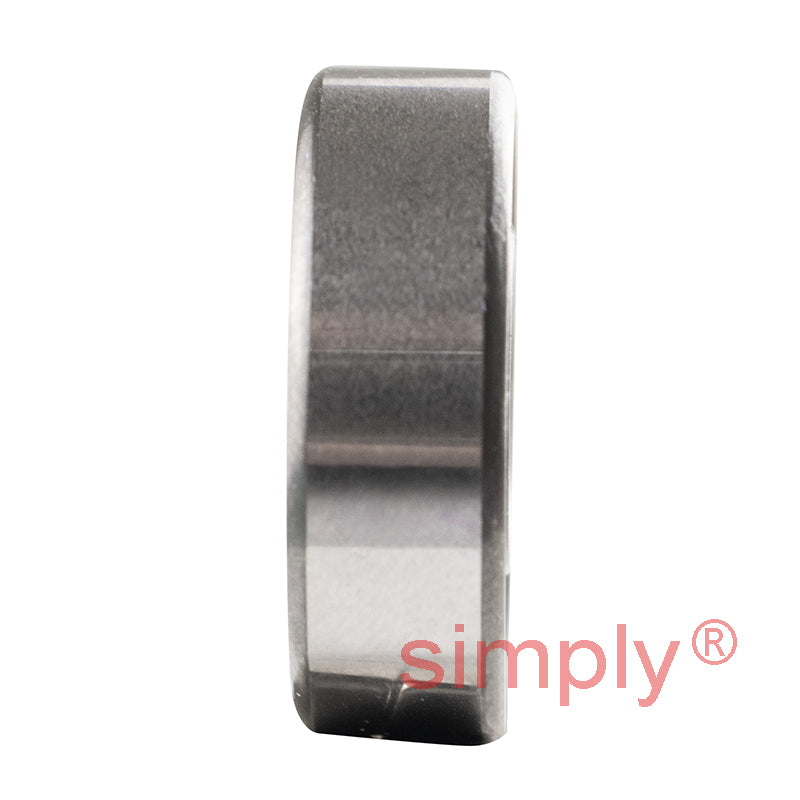

Major Branded 619/8 Open Deep Groove Ball Bearing 8x19x6mm
Major Branded 619/8 Open Deep Groove Ball Bearing 8x19x6mm
Regular price
$4.45
ex VAT
Regular price
Sale price
$4.45
ex VAT
Equivalent to: 698
In stock
Price Break
10+
$2.98
19+
$2.81
29+
$2.78
39+
$2.75
49+
$2.71
74+
$2.68
99+
$2.51
199+
$2.48
249+
$2.44
499+
$2.41
999+
$2.34
Quantity
Couldn't load pickup availability
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 19mm
- Width:
- 6mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 8mm |
|---|---|
| D | 19mm |
| B | 6mm |
| Dynamic load C | 1.9 kN |
| Static load Co | 0.735 kN |
| Fatigue load limit Pu | 0.031 kN |
| Reference speed | 80000 rpm |
| Limiting speed | 50000 rpm |
| Mass | 0.0071 kg |
| d1 | 11.1mm |
| D1 | 16.1mm |
| D2 | 19mm |
| r1r2 min | 0.3mm |
| da min | 10mm |
| Da max | 17mm |
| ra max | 0.3mm |
| Calc factor Kr | 0.02 |
| Calc factor | 10 |
