SKU: 61900-2Z/C3-SKF

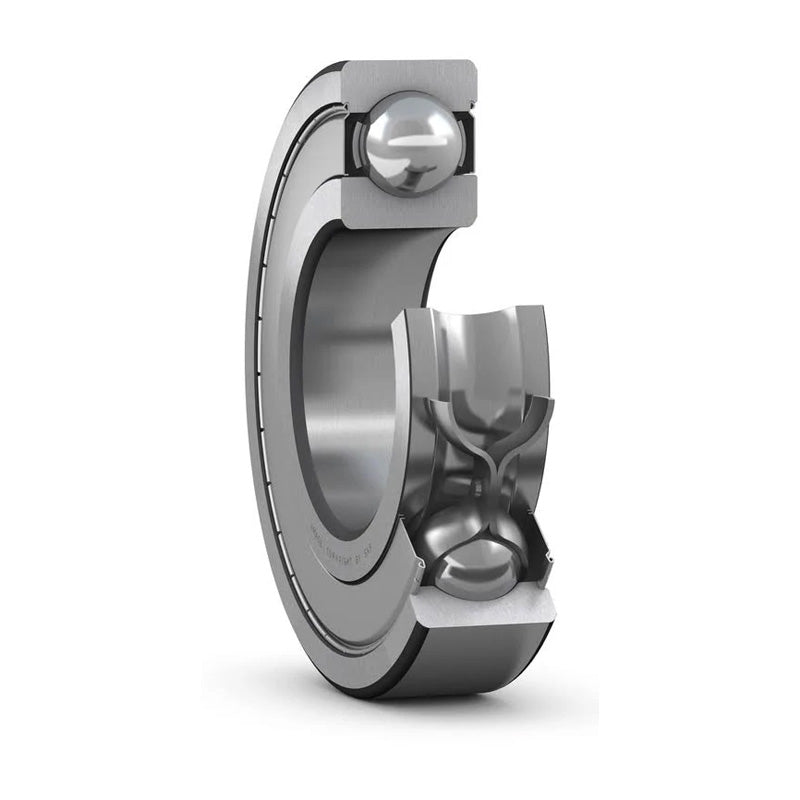

SKF 619002ZC3 Metal Shielded Thin Section Deep Groove Ball Bearing 10x22x6mm

SKF 619002ZC3 Metal Shielded Thin Section Deep Groove Ball Bearing 10x22x6mm

Equivalent to: 61900ZZEC3 61900ZZC3 61900.2ZC3 61900KDDC3 61900DDC3 619002ZRC3 61900FFC3 6900ZZEC3 6900ZZC3 69002ZC3 6900.2ZC3 6900KDDC3 6900DDC3 69002ZRC3 6900FFC3

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d 10mm
D 22mm
B 6mm
Dynamic load C 2.08 kN
Static load Co 0.85 kN
Fatigue load limit Pu 0.036 kN
Reference speed 75000 rpm
Limiting speed 36000 rpm
Weight 0.01 kg
d1 0mm
d2 12mm
D2 19mm
r1r2 min 0.3mm
da min 12mm
da max 12mm
Da max 20mm
ra max 0.3mm
Calculation factor kr 0.02
Calculation factor f0 9.3
