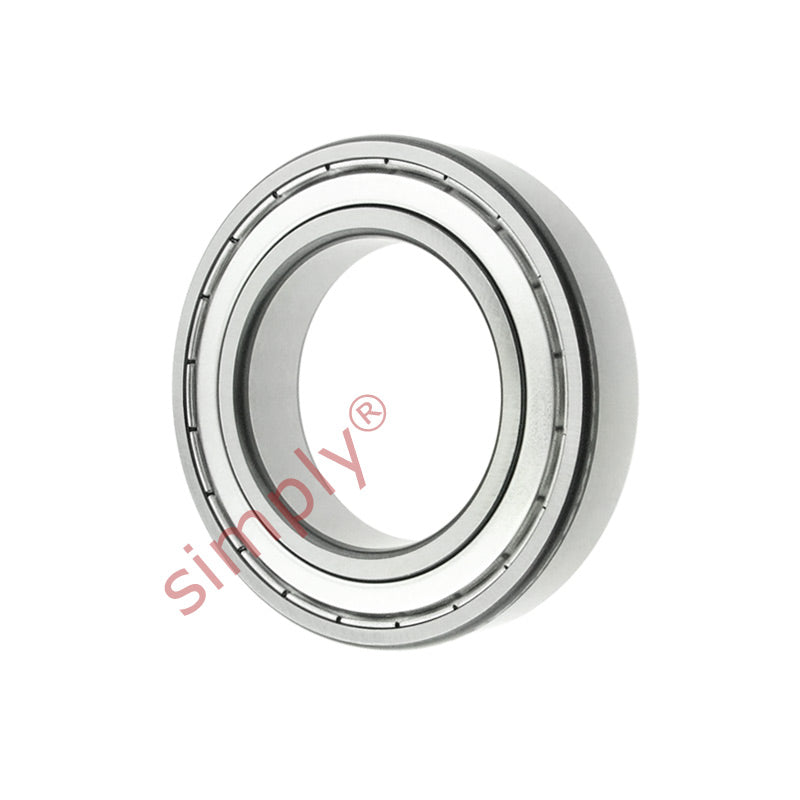

Codex 61901ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 12x24x6mm

SKU: 61901-ZZ-CDX

Codex 61901ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 12x24x6mm

$9.26 ex VAT
$9.26
ex VAT
Equivalent to: 61901ZZ 619012Z 619012ZR 61901ZZE 61901FF 61901DD 61901DDC 61901KDDC EL12ZZ EL122Z
In stock

Quantity Price Breaks

4 $8.24
10 $7.78
20 $7.69
30 $7.59
50 $7.50
75 $7.41
100 $6.95
200 $6.85
250 $6.76
500 $6.67
1000 $6.48
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Codex 61901ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 12x24x6mm
SKU: 61901-ZZ-CDX

Codex 61901ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 12x24x6mm

$9.26 ex VAT
$9.26
ex VAT

Description

Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that only require 1 shield
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost effective solution

Technical

d = 12mm
D = 24mm
B = 6mm
Dynamic Load = 2.25 kN
Static Load = 0.98 kN
Fatigue Load Limit Pu = 0.043
Reference Speed = 70000 rpm
Limiting Speed = 32000 rpm
Weight = 0.011kg
d1 = 15.5mm
D2 = 21.4mm
r1r2 min = 0.3mm
da min = 14mm
Da max = 22mm
ra max = 0.3
Calc factor kr = 0.02
Calc factor Cor f0 = 9.7
