SKU: 61905-2RS1-SKF

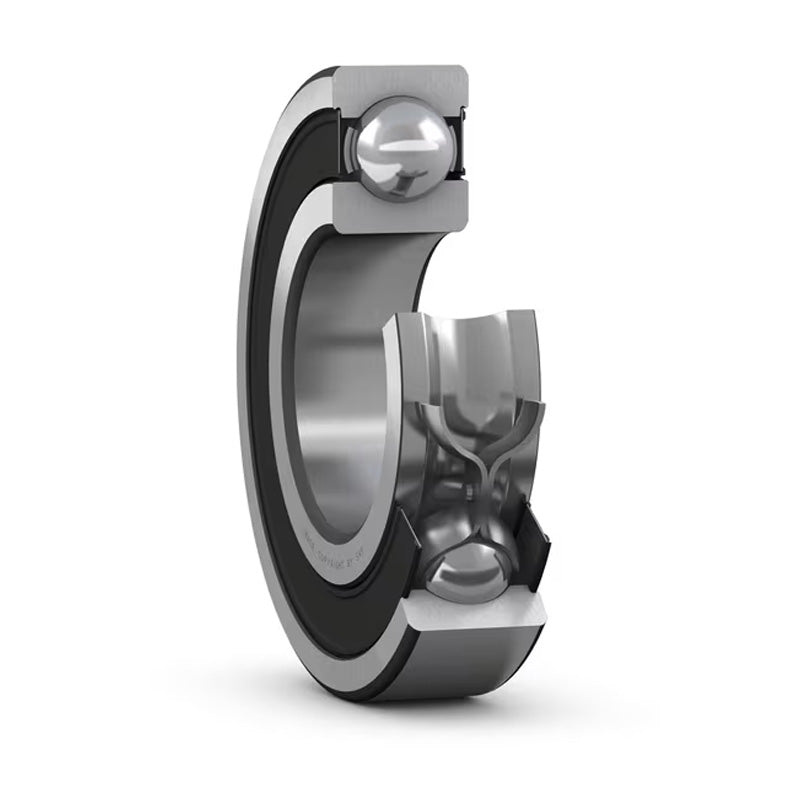

SKF 619052RS1 Rubber Sealed Thin Section Deep Groove Ball Bearing 25x42x9mm
Equivalent to: 61905NSE 61905DU 61905RS 61905RSH 61905P 61905RSR 61905LU 6905NSE 6905DU 6905RS 6905RSH 6905P 6905RSR 6905LU 619052NSE 61905DDU 619052RS 619052RSH 61905PP 619052RSR 61905LLU
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 9mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 25mm |
|---|---|
| D | 42mm |
| B | 9mm |
| Dynamic load C | 7.02 kN |
| Static load Co | 4.3 kN |
| Fatigue load limit Pu | 0.193 kN |
| Reference speed | 36000 rpm |
| Limiting speed | 10000 rpm |
| Weight | 0.045 kg |
| d2 | 29.2mm |
| D2 | 37.8mm |
| r1r2 min | 0.3mm |
| da min | 27mm |
| da max | 29mm |
| Da max | 40mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.02 |
| Calculation factor f0 | 15 |
