SKU: 61911-2RS1-SKF

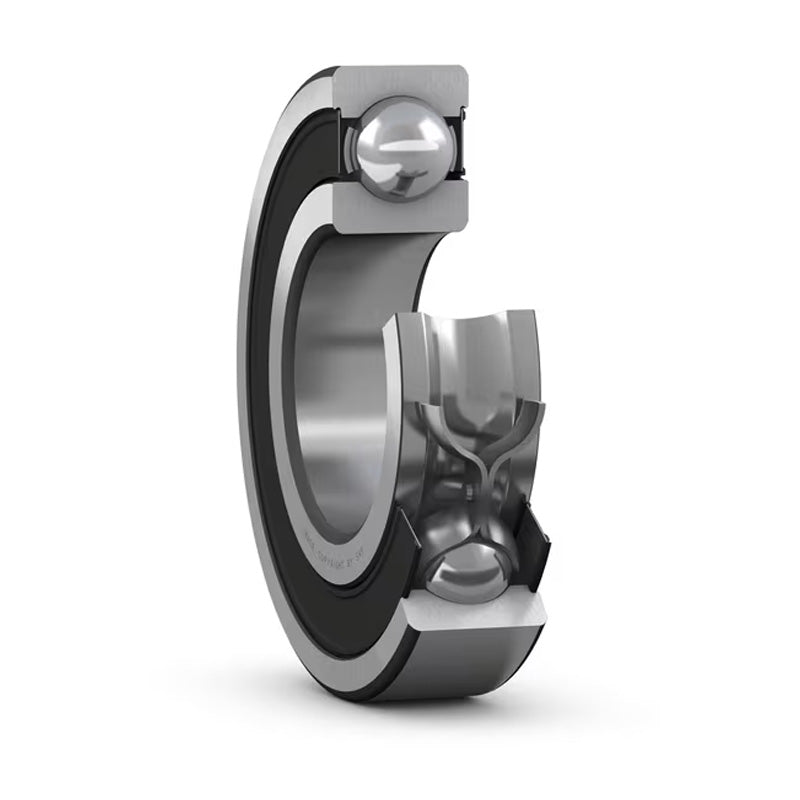

SKF 619112RS1 Rubber Sealed Thin Section Deep Groove Ball Bearing 55x80x13mm
Equivalent to: 61911NSE 61911DU 61911RS 61911RSH 61911P 61911RSR 61911LU 6911NSE 6911DU 6911RS 6911RSH 6911P 6911RSR 6911LU 619112NSE 61911DDU 619112RS 619112RSH 61911PP 619112RSR 61911LLU
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 80mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 55mm |
|---|---|
| D | 80mm |
| B | 13mm |
| Dynamic load C | 16.5 kN |
| Static load Co | 14 kN |
| Fatigue load limit Pu | 0.6 kN |
| Reference speed | 17000 rpm |
| Limiting speed | 5000 rpm |
| Weight | 0.19 kg |
| d1 | 63.2mm |
| D2 | 74.2mm |
| r1r2 min | 1mm |
| da min | 59.6mm |
| Da max | 75.4mm |
| ra max | 1mm |
| Calculation factor kr | 0.02 |
| Calculation factor f0 | 16 |
