SKU: 61936-MA-FAG

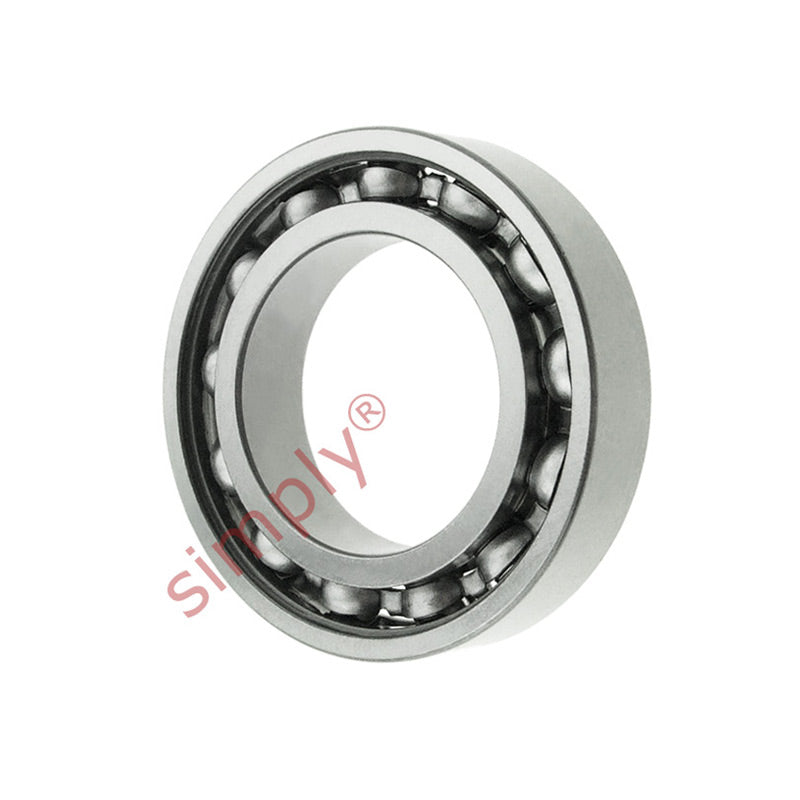

FAG 61936MA Open Thin Section Deep Groove Ball Bearing 180x250x33mm
FAG 61936MA Open Thin Section Deep Groove Ball Bearing 180x250x33mm
Out of stock
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 180mm
- Outside Diameter:
- 250mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 180mm |
|---|---|
| D | 250mm |
| B | 33mm |
| Dynamic load C | 119 kN |
| Static load Co | 134 kN |
| Fatigue load limit Pu | 3.9 kN |
| Reference speed | 5300 rpm |
| Limiting speed | 4300 rpm |
| Mass | 5.05 kg |
| d1 | 203mm |
| D1 | 227mm |
| D2 | 2mm |
| r1r2 min | 189mm |
| da min | 241mm |
| Da max | 2mm |
| ra max | 0.02mm |
| Calc factor Kr | 16 |
| Calc factor | N/A |
