• SKF 61960MA Open Type Thin Section Deep Groove Ball Bearing 300x420x56mm
1 1

SKU: 61960MA-SKF

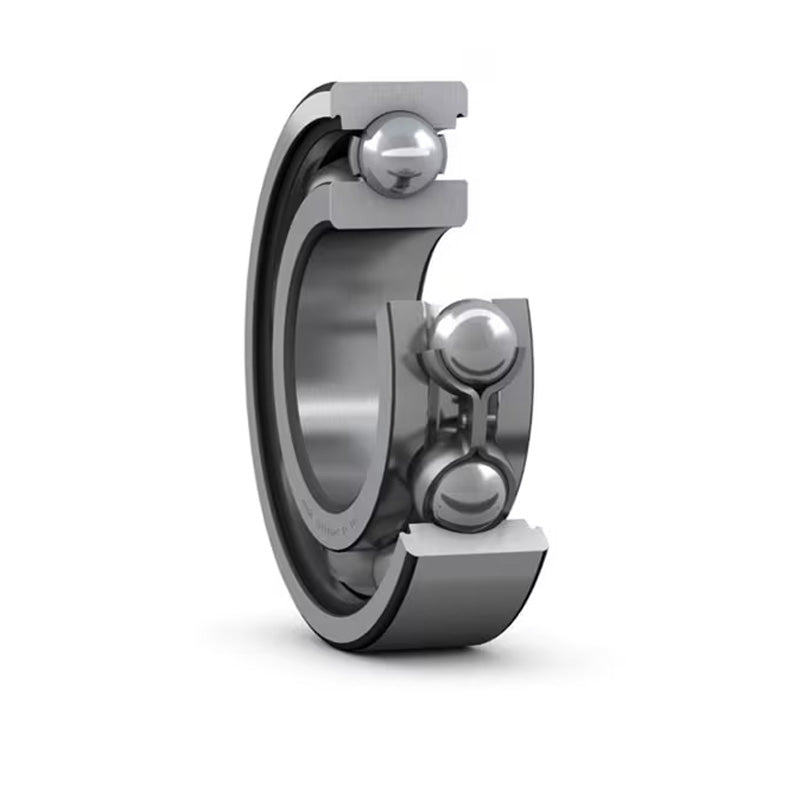

SKF 61960MA Open Type Thin Section Deep Groove Ball Bearing 300x420x56mm

SKF 61960MA Open Type Thin Section Deep Groove Ball Bearing 300x420x56mm
$4,612.46 ex VAT
$4,612.46 ex VAT
Sale Sold out

In stock

Price Break
4+ $3,089.56
10+ $2,915.99
20+ $2,881.28
30+ $2,846.57
50+ $2,811.85
75+ $2,777.14
100+ $2,603.57
200+ $2,568.85
250+ $2,534.14
500+ $2,499.42
1000+ $2,429.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost effective solution

Brand / Quality:
SKF - High Quality
Inside Diameter:
300mm
Outside Diameter:
420mm
Width:
56mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 300mm
D 420mm
B 56mm
Dynamic load 270 kN
Static load 375 kN
Fatigue load limit Pu 8.3 kN
Reference speed 3 000 rpm
Limiting speed 2 400 rpm
Weight 24.5 kg
d1 338mm
D1 382mm
D2 3mm
r1r2 min 313mm
da min 407mm
Da max 2.5mm
ra max 0.02mm
Calculation factor kr 16
Calculation factor Cor N/A
