SKU: 62/22-2RSR/C3-MB

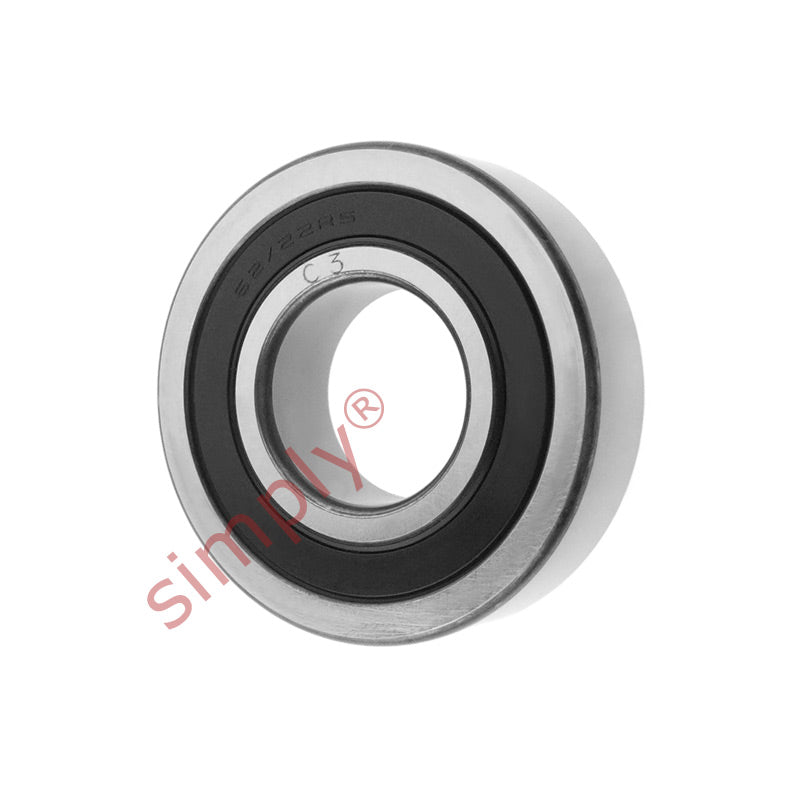

Major Branded 62/222RSRC3 Rubber Sealed Deep Groove Ball Bearing 22x50x14mm
Major Branded 62/222RSRC3 Rubber Sealed Deep Groove Ball Bearing 22x50x14mm
Regular price
$30.49
ex VAT
Regular price
Sale price
$30.49
ex VAT
Equivalent to: 6222RSC3 62222RSC3 6222DDUC3 6222DUC3
In stock
Price Break
10+
$20.43
19+
$19.28
29+
$19.05
39+
$18.82
49+
$18.59
74+
$18.36
99+
$17.21
199+
$16.98
249+
$16.75
499+
$16.52
999+
$16.06
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 50mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 22mm |
|---|---|
| D | 50mm |
| B | 14mm |
| Dynamic load C | 14 kN |
| Static load Co | 7.65 kN |
| Fatigue load limit Pu | 0.325 kN |
| Reference speed | 30000 rpm |
| Limiting speed | 9000 rpm |
| Mass | 0.12 kg |
| d1 | 32.2mm |
| D2 | 44mm |
| r1r2 min | 1mm |
| da min | 27.6 |
