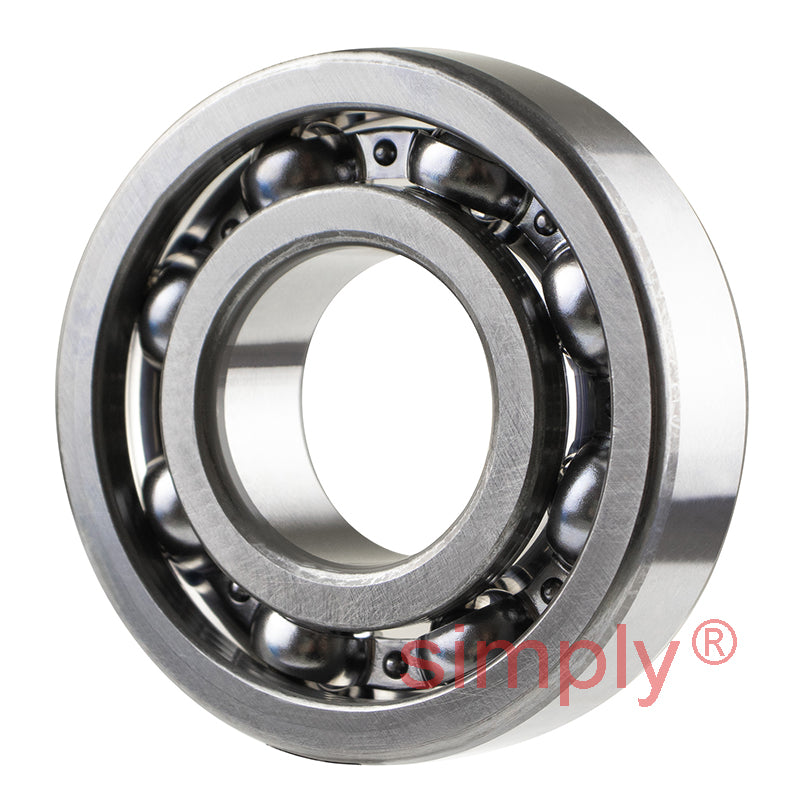

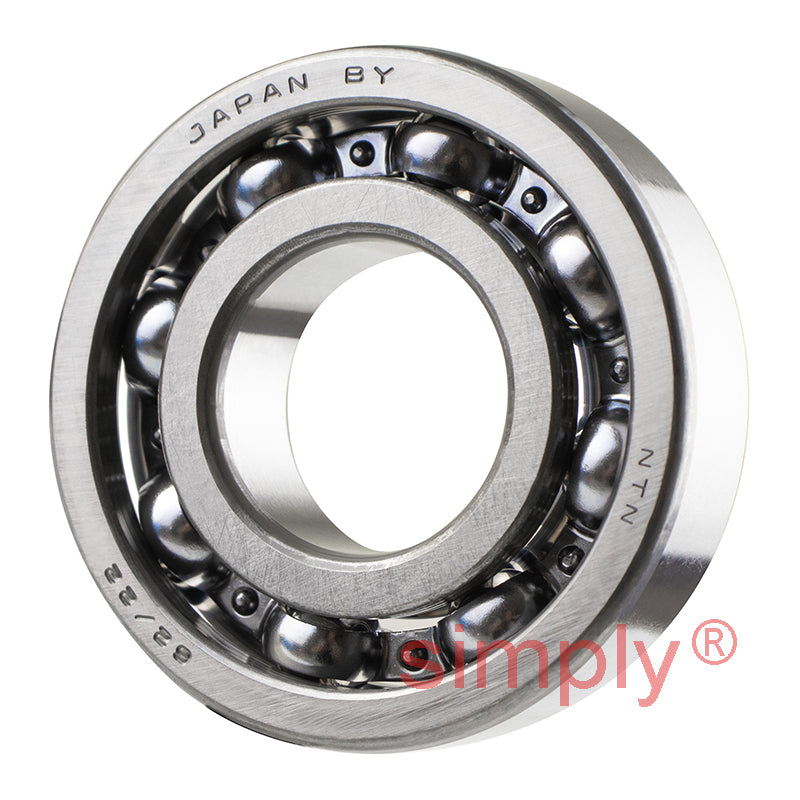

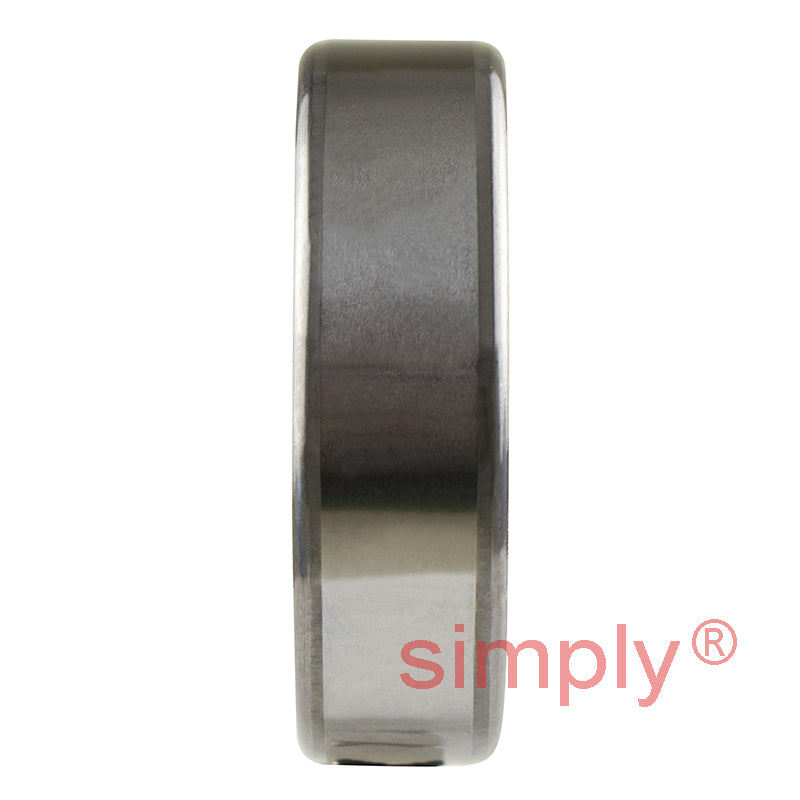

• NTN 62/22 Open Type Deep Groove Ball Bearing 22x50x14mm
  • NTN 62/22 Open Type Deep Groove Ball Bearing 22x50x14mm
  • NTN 62/22 Open Type Deep Groove Ball Bearing 22x50x14mm
  • NTN
1 4

SKU: 62/22-NTN

NTN 62/22 Open Type Deep Groove Ball Bearing 22x50x14mm

NTN 62/22 Open Type Deep Groove Ball Bearing 22x50x14mm
$25.94 ex VAT
$25.94 ex VAT
Sale Sold out

Equivalent to: 62/22CM 1A22

In stock

Price Break
3+ $17.37
5+ $16.40
10+ $16.20
25+ $16.01
49+ $15.81
74+ $15.62
99+ $14.64
199+ $14.44
249+ $14.25
499+ $14.05
999+ $13.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
22mm
Outside Diameter:
50mm
Width:
14mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 22mm
D 50mm
B 14mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
C<sub>r</sub> 14.3 kN
C<sub>or</sub> 6.8 kN
C<sub>u</sub> 0.5 kN
f<sub>0</sub> 13.5 kN
Grease 14000 rpm
Oil 17000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 27mm
D<sub>a</sub> Max. 45mm
r<sub>as</sub> Max. 1mm
Weight 0.117 kg
