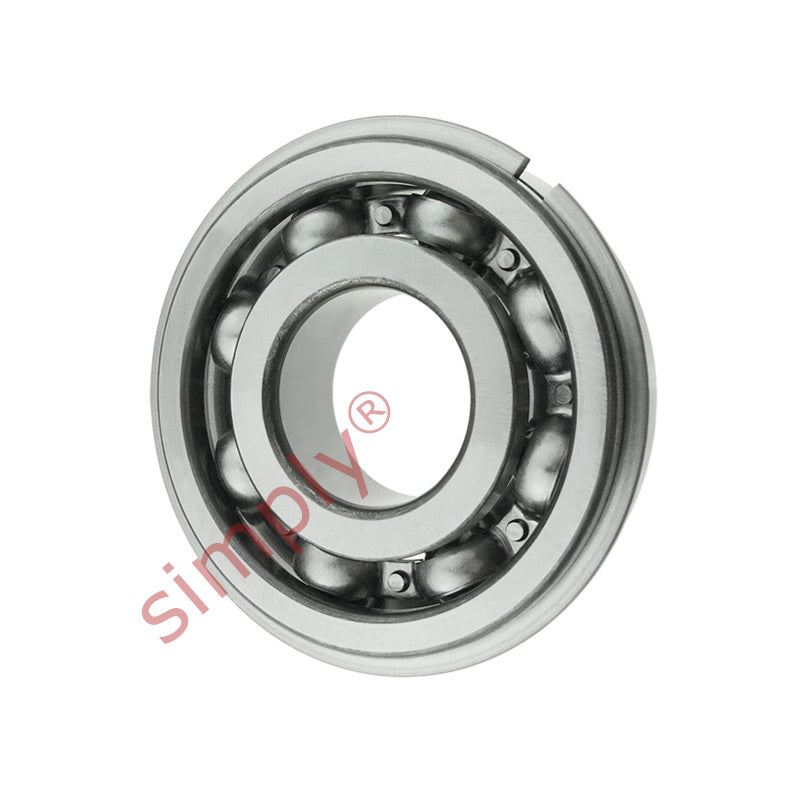

FAG 62/28NR FAG Deep Groove Ball Bearing with Snap Ring 28x58x16mm
FAG 62/28NR FAG Deep Groove Ball Bearing with Snap Ring 28x58x16mm
Out of stock
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 58mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 28mm |
|---|---|
| D | 58mm |
| B | 16mm |
| Dyamic load C | 16.8 kN |
| Static load Co | 9.5 kN |
| Fatigue load limit Pu | 0.405 kN |
| Reference speed | 260000 rpm |
| Limiting speed | 16000 rpm |
| Mass | 0.18 kg |
| d1 | 37mm |
| d2 | 49.2mm |
| D2 | 54.2mm |
| r1r2 min | 1mm |
| da min | 33.6 |
