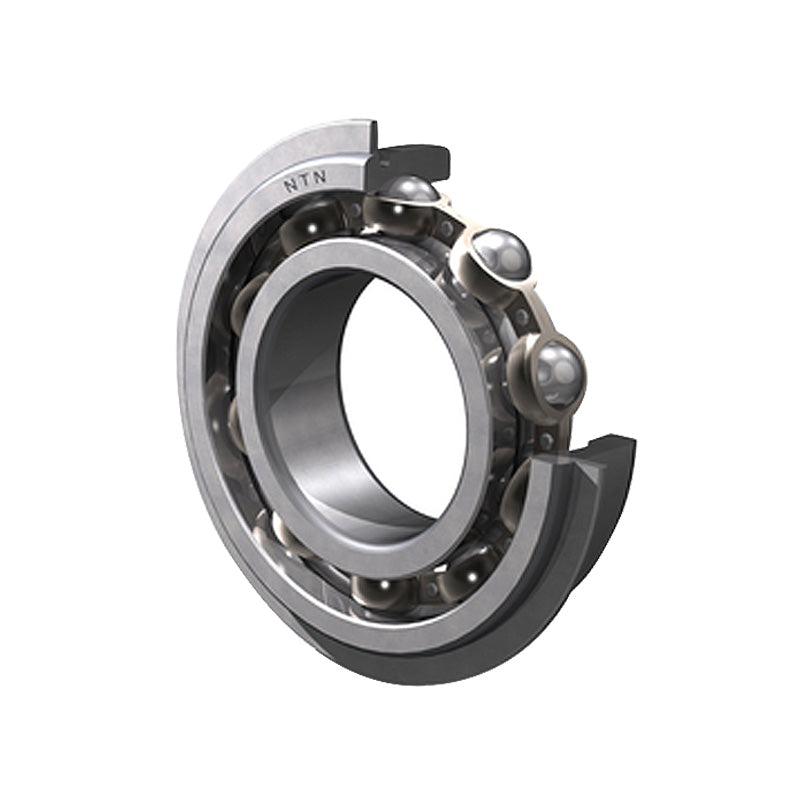

• NTN 62/28NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 28x58x16mm
  • NTN
1 2

SKU: 62/28NRC3-NTN

NTN 62/28NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 28x58x16mm

NTN 62/28NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 28x58x16mm
$19.77 ex VAT
$19.77 ex VAT
Sale Sold out

Equivalent to: 2A28NRC3

In stock

Price Break
3+ $13.24
5+ $12.50
10+ $12.35
25+ $12.20
49+ $12.05
74+ $11.90
99+ $11.16
199+ $11.01
249+ $10.86
499+ $10.71
999+ $10.42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
28mm
Outside Diameter:
58mm
Width:
16mm
Seals / Shields:
None
Clearance:
C3
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 28mm
D 58mm
B 16mm
r<sub>s</sub> min 1mm
rNS Min. 0.5mm
--- Loads angles and speeds
C<sub>r</sub> 19.8 kN
C<sub>or</sub> 9.75 kN
C<sub>u</sub> 0.72 kN
f<sub>0</sub> 13.4 kN
Grease 12000 rpm
Oil 14000 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 55.6mm
a Max. 2.46mm
b Min. 1.35mm
r<sub>o</sub> Max. 0.4mm
D<sub>2</sub> Max. 63.7mm
f Max. 1.12mm
--- Fitting Dimensions
d<sub>a</sub> Min. 33mm
d<sub>a</sub> Max. 35.5mm
D<sub>a</sub> Max. 53mm
D<sub>X</sub> (approx) 64.5mm
C<sub>Y</sub> Max. 3.3mm
C<sub>Z</sub> Min. 1.2mm
r<sub>as</sub> Max. 1mm
r<sub>Nas</sub> Max. 0.5mm
Weight 0.171 kg
