SKU: 6200-2NSE-NACHI

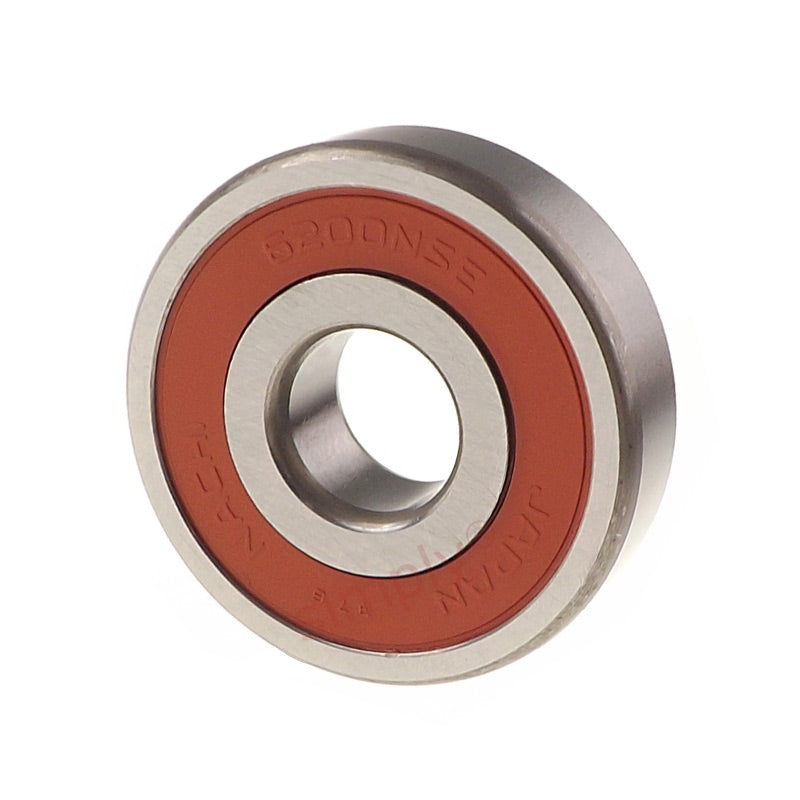

NACHI 62002NSE Contact Rubber Sealed Deep Groove Ball Bearing 10x30x9mm
NACHI 62002NSE Contact Rubber Sealed Deep Groove Ball Bearing 10x30x9mm
Regular price
$6.21
ex VAT
Regular price
Sale price
$6.21
ex VAT
Equivalent to: 6200NSE 6200DU 6200RS 6200RSH 6200P 6200RSR 6200LU 6200DDU 62002RS 62002RS1 62002RSH 6200PP 62002RSR 62002RSR
In stock
Price Break
5+
$4.16
9+
$3.93
19+
$3.88
29+
$3.83
49+
$3.79
74+
$3.74
99+
$3.51
199+
$3.46
249+
$3.41
499+
$3.37
999+
$3.27
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 9mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 10mm |
|---|---|
| Outside Diameter D | 30mm |
| Width B | 9mm |
| Min radius r | 0.6mm |
| Dynamic load | 5100 kN |
| Static load | 2390 kN |
| Max speed | 25000 rpm |
| da min | 15mm |
| Da max | 25mm |
| ra max | 0.6mm |
| Weight | 0.032 kg |
