SKU: 6200-2RSR-FAG

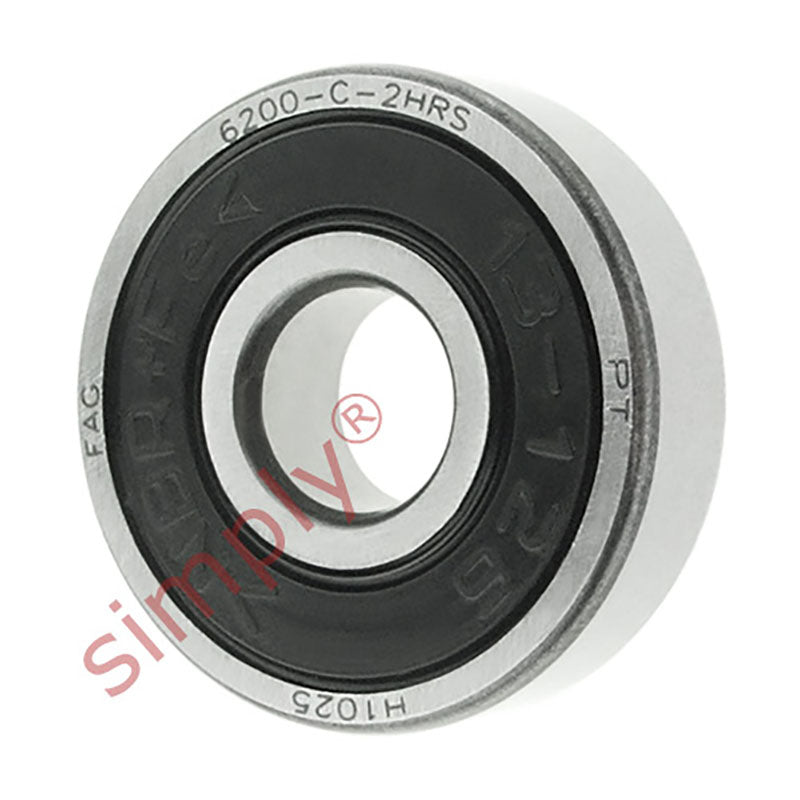

FAG 62002RSR Rubber Sealed Deep Groove Ball Bearing 10x30x9mm
FAG 62002RSR Rubber Sealed Deep Groove Ball Bearing 10x30x9mm
Regular price
$6.52
ex VAT
Regular price
Sale price
$6.52
ex VAT
Equivalent to: 6200NSE 6200DU 6200RS 6200RSH 6200P 6200RSR 6200LU 62002NSE 6200DDU 62002RS 62002RS1 62002RSH 6200PP 6200LLU
In stock
Price Break
10+
$4.37
19+
$4.12
29+
$4.08
39+
$4.03
49+
$3.98
74+
$3.93
99+
$3.68
199+
$3.63
249+
$3.58
499+
$3.54
999+
$3.44
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 9mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 10mm |
|---|---|
| D | 30mm |
| B | 9mm |
| Dynamic load C | 5.4 kN |
| Static load Co | 2.36 kN |
| Fatigue load limit Pu | 0.1 kN |
| Reference speed | 56000 rpm |
| Limiting speed | 17000 rpm |
| Mass | 0.032 kg |
| d1 | 17mm |
| D2 | 24.8mm |
| r1r2 min | 0.6mm |
| da min | 14.2 |
