SKU: 6200-2Z-EU

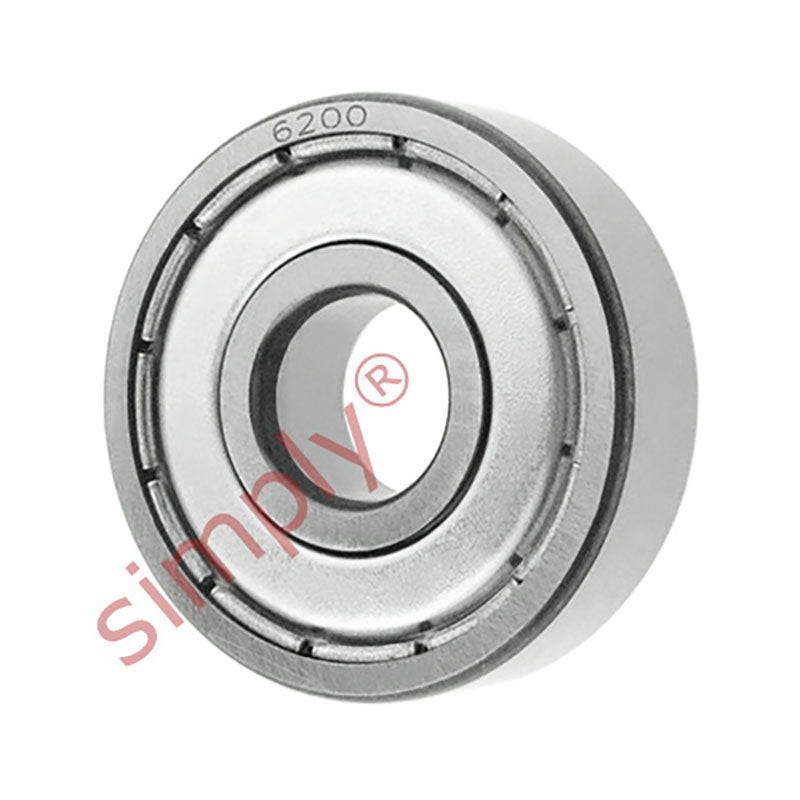

6200ZZ Budget Metal Shielded Deep Groove Ball Bearing 10x30x9mm
Equivalent to: 6200ZZE 6200ZZ 6200.2Z 6200KDD 6200DD 6200FF 62002ZR 6200ZZE 6200ZZ 62002ZR 62002RS2
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 9mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 10mm |
|---|---|
| D | 30mm |
| B | 9mm |
| r min | 0.6mm |
| Dynamic load Cr | 5.1 kN |
| Static load Cor | 2.4 kN |
| Speed in grease | 24000 rpm |
| Speed in oil | 29000 rpm |
