SKU: 6200-2Z-KOY

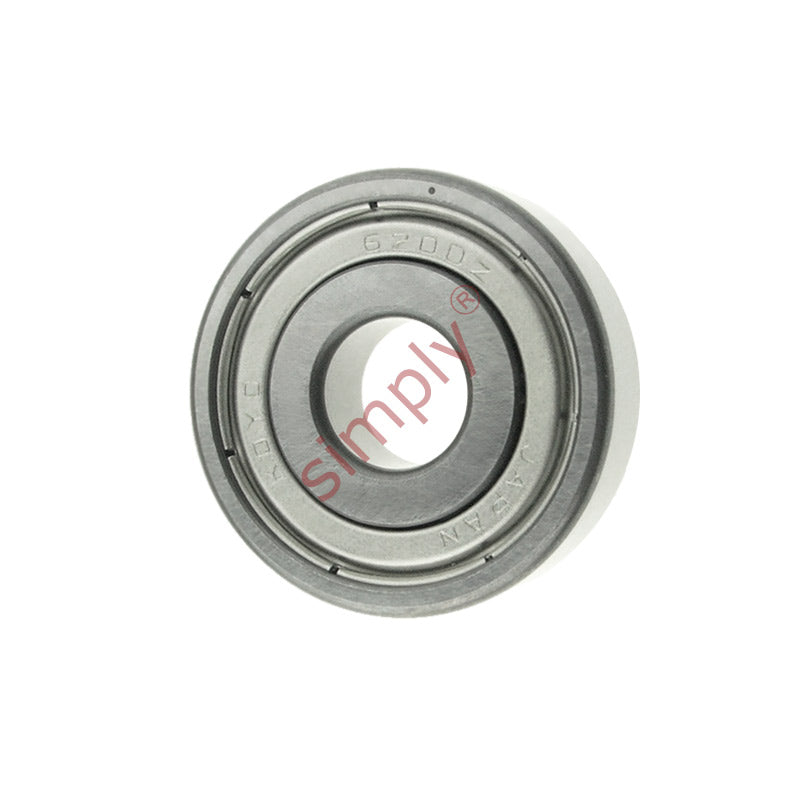

KOYO 62002Z Metal Shielded Deep Groove Ball Bearing 10x30x9mm
Equivalent to: 6200ZZE 62002Z 6200.2Z 6200KDD 6200DD 62002ZR 6200FF 6200Z
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
KOYO Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 9mm
- Seals / Shields:
- Metal Shielded
Technical
| Inside Diameter d | 10mm |
|---|---|
| Outside Diameter D | 30mm |
| Width B | 9mm |
| Min radius r | 0.6mm |
| Dynamic load | 5.1 kN |
| Static load | 2.4 kN |
| Max speed in oil | 29000 rpm |
| Max speed in grease | 16000 rpm |
