SKU: 6200-ZZ/C3-EMQ-CDX

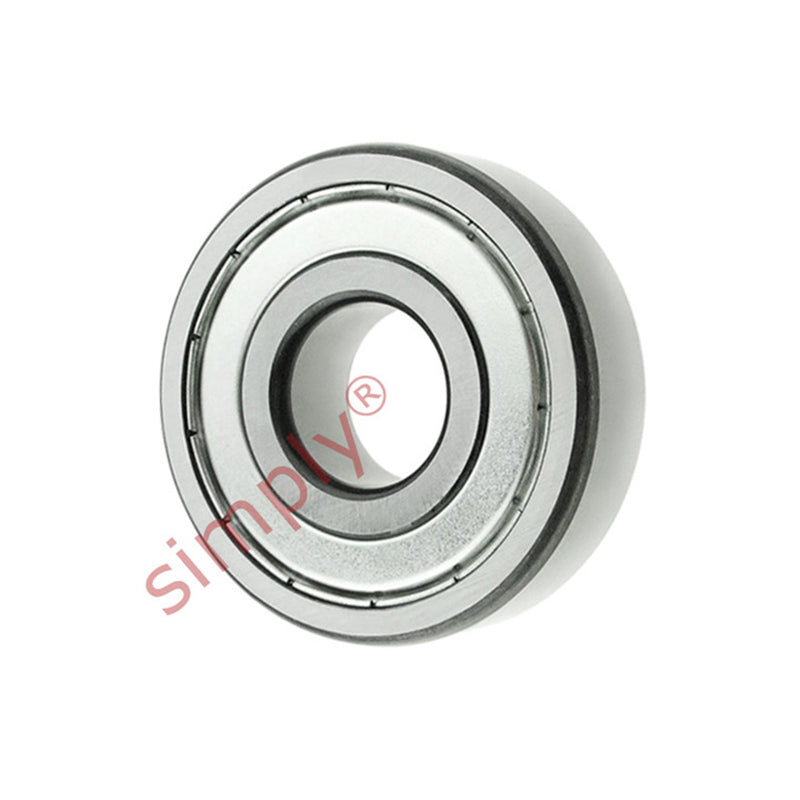

Codex 6200ZZC3 Extreme Electric Motor Quality Metal Shielded Deep Groove Ball Bearing 10x30x9mm
Equivalent to: 6200-ZZ/C3 6200-2Z/C3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Extreme Electric Motor Quality Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. For use in electrical motors, tools and household appliances. |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 9mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 10mm |
|---|---|
| D | 30mm |
| B | 9mm |
| Dynamic load C | 5.4 kn |
| Static load Co | 2.36 kn |
| Fatigue load limit Pu | 0.1 |
| Reference speed | 56000 rpm |
| Limiting speed | 28000 rpm |
| Weight | 0.032 kg |
| d1 | -mm |
| D2 | 24.8mm |
| r1r2 min | 0.6mm |
| da min | 14.2mm |
| Da max | 25.8mm |
| ra max | 0.6mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 13 |
