SKU: 6201-2NSE-NACHI

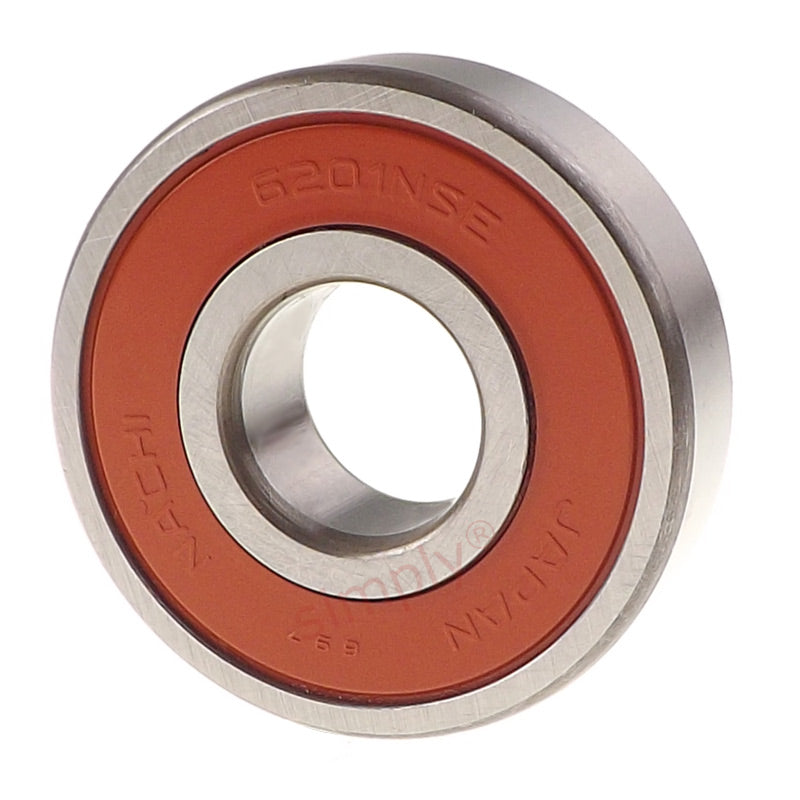

NACHI 62012NSE Contact Rubber Sealed Deep Groove Ball Bearing 12x32x10mm
NACHI 62012NSE Contact Rubber Sealed Deep Groove Ball Bearing 12x32x10mm
Regular price
$6.48
ex VAT
Regular price
Sale price
$6.48
ex VAT
Equivalent to: 6201NSE 6201DU 6201RS 6201RSH 6201P 6201RSR 6201LU 6201DDU 62012RS 62012RS1 62012RSH 6201PP 62012RSR 62012RSR
In stock
Price Break
5+
$4.35
9+
$4.10
19+
$4.05
29+
$4.01
49+
$3.96
74+
$3.91
99+
$3.66
199+
$3.61
249+
$3.57
499+
$3.52
999+
$3.42
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 32mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 12mm |
|---|---|
| Outside Diameter D | 32mm |
| Width B | 10mm |
| Min radius r | 0.6mm |
| Dynamic load | 6800 kN |
| Static load | 3050 kN |
| Max speed | 22000 rpm |
| da min | 17mm |
| Da max | 27mm |
| ra max | 0.6mm |
| Weight | 0.037 kg |
