SKU: 6201-2Z-EU

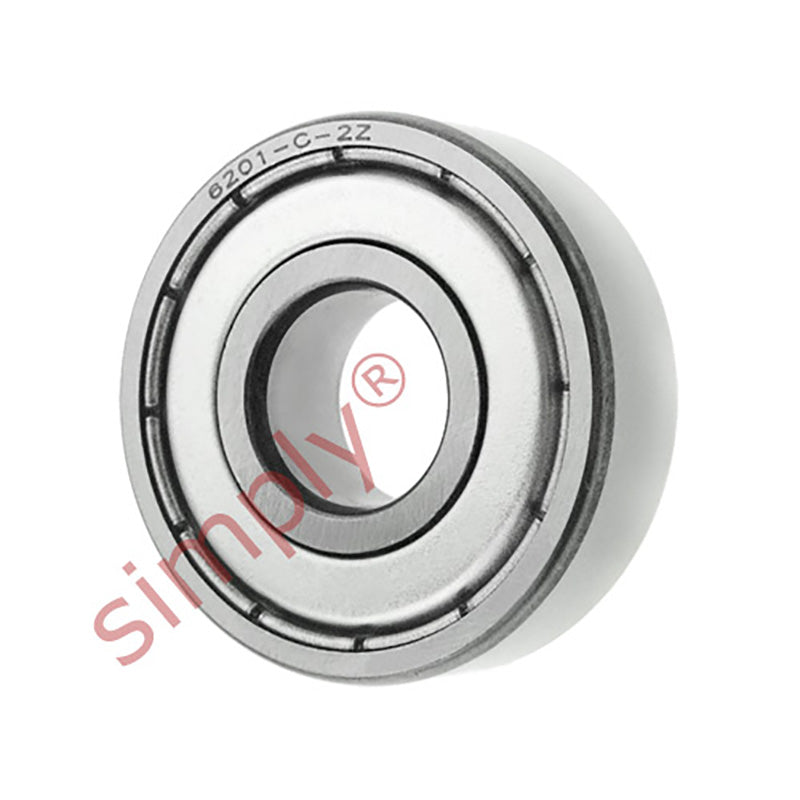

6201ZZ Budget Metal Shielded Deep Groove Ball Bearing 12x32x10mm
Equivalent to: 6201ZZE 6201ZZ 6201.2Z 6201KDD 6201DD 6201FF 62012ZR 6201ZZE 6201ZZ 62012ZR 62012RS2
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 32mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 12mm |
|---|---|
| D | 32mm |
| B | 10mm |
| r min | 0.6mm |
| Dynamic load Cr | 6.8 kN |
| Static load Cor | 3.05 kN |
| Speed in grease | 22000 rpm |
| Speed in oil | 27000 rpm |
