SKU: 6201NR-NSK

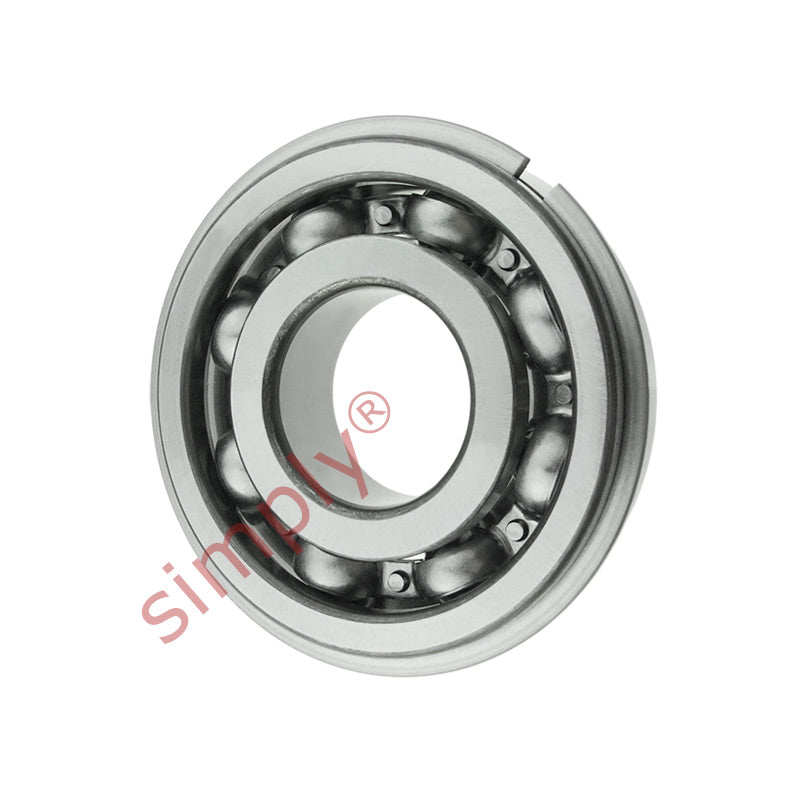

NSK 6201NR Open Type Deep Groove Ball Bearing With Snap Ring 12x32x10mm

Name: NSK 6201NR Open Type Deep Groove Ball Bearing With Snap Ring 12x32x10mm
Brand: NSK
SKU: 6201NR-NSK
Price: 18.88 USD
Availability: InStock

$18.88 ex VAT

Sale Sold out

In stock

Price Break

4+ $12.65

10+ $11.94

20+ $11.79

30+ $11.65

50+ $11.51

75+ $11.37

100+ $10.66

200+ $10.51

250+ $10.37

500+ $10.23

1000+ $9.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: NSK - High Quality
Inside Diameter:: 12mm
Outside Diameter:: 32mm
Width:: 10mm
Seals / Shields:: None
Clearance:: * Standard
Snap Ring:: Snap Ring

Technical

d	12mm
D	32mm
B	10mm
r min	0.6mm
Dynamic load Cr	6800 N (695 kgf)
Static load Cor	3050 N (310 kgf)
Factor	12.3
Speed in grease	22000 rpm
Speed in oil	28000 rpm
a max	2.06mm
b min	1.35mm
D1 max	30.15mm
ro max	0.4mm
rN min	0.5mm
D2 max	36.7mm
f max	1.12mm
da2 min	16mm
da2max	17mm
Da2max	28mm
ra max	0.6mm
Dx min	37.5mm
Cy max	2.9mm
Weight	0.037 kg
