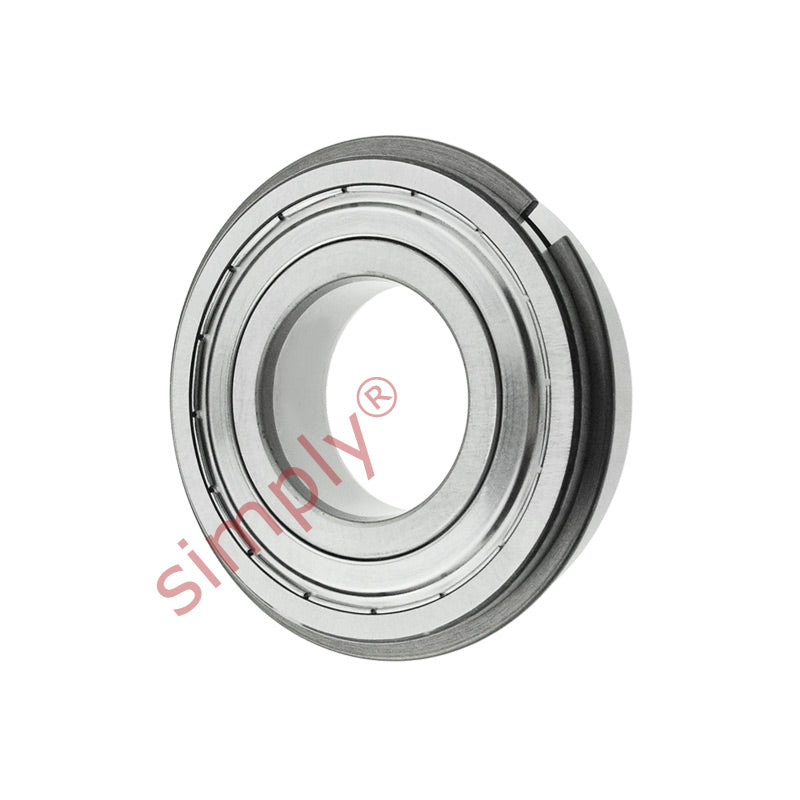

NSK 6201ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 12x32x10mm
NSK 6201ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 12x32x10mm
Regular price
$9.93
ex VAT
Regular price
Sale price
$9.93
ex VAT
Equivalent to: 62012ZNR
In stock
Price Break
4+
$6.65
10+
$6.27
20+
$6.20
30+
$6.12
50+
$6.05
75+
$5.97
100+
$5.60
200+
$5.53
250+
$5.45
500+
$5.38
1000+
$5.23
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 32mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 12mm |
|---|---|
| D | 32mm |
| B | 10mm |
| r min | 0.6mm |
| Dynamic load Cr | 6800 N (695 kgf) |
| Static load Cor | 3050 N (310 kgf) |
| Factor | 12.3 |
| Speed in grease | 22000 rpm |
| Speed in oil | 28000 rpm |
| a max | 2.06mm |
| b min | 1.35mm |
| D1 max | 30.15mm |
| ro max | 0.4mm |
| rN min | 0.5mm |
| D2 max | 36.7mm |
| f max | 1.12mm |
| da2 min | 16mm |
| da2max | 17mm |
| Da2max | 28mm |
| ra max | 0.6mm |
| Dx min | 37.5mm |
| Cy max | 2.9mm |
| Weight | 0.037 kg |
