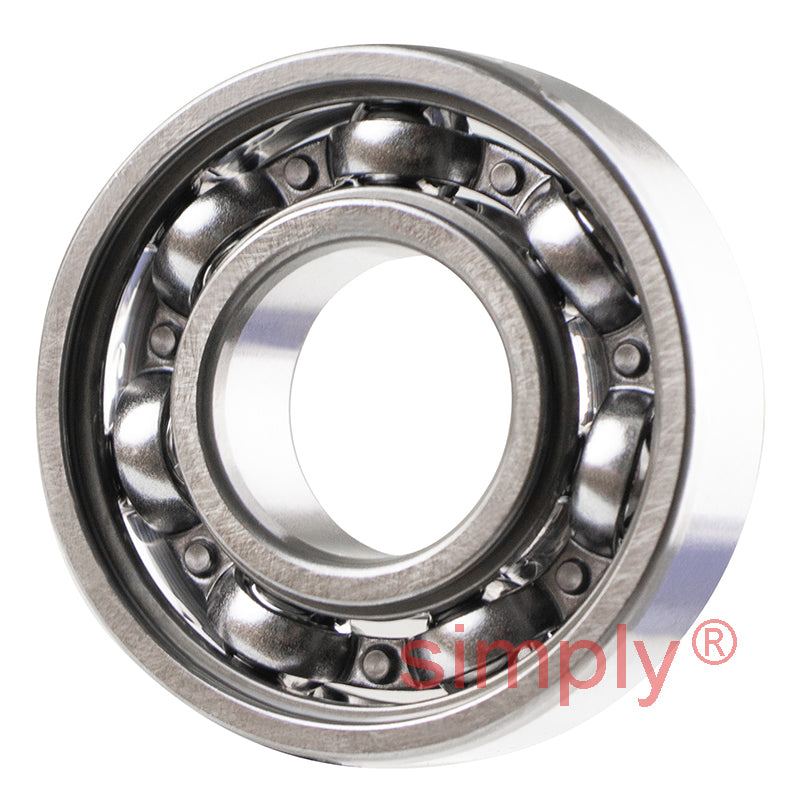

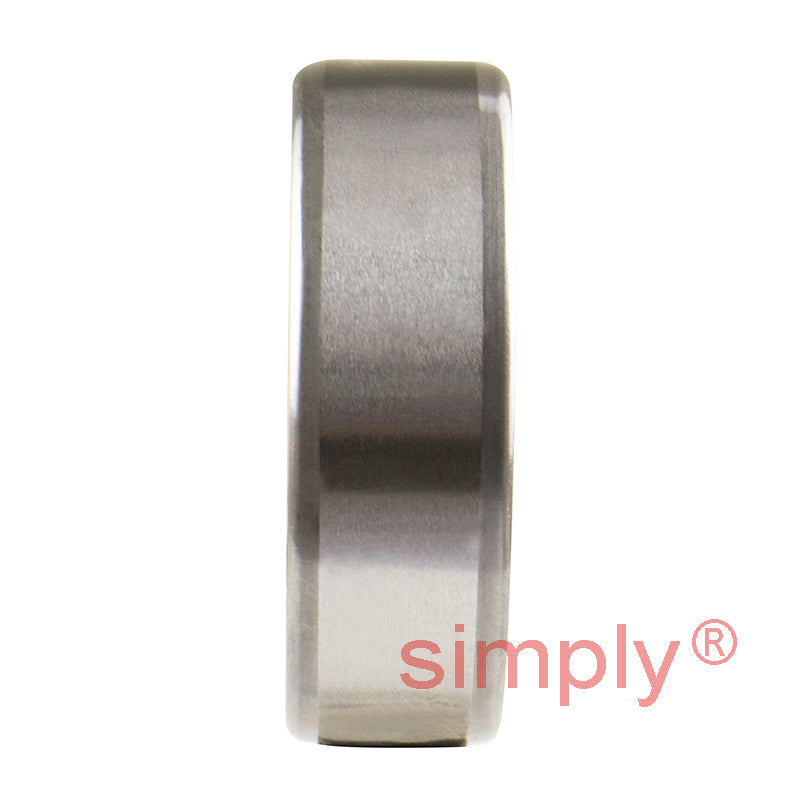

NTN 6202 Open Type Deep Groove Ball Bearing 15x35x11mm

NTN 6202 Open Type Deep Groove Ball Bearing 15x35x11mm
Regular price $6.15 ex VAT
Regular price Sale price $6.15 ex VAT
Sale Sold out

Equivalent to: 6202CM 202K 1202 202S 6202 3202 02A

In stock

Price Break
3+ $4.12
5+ $3.89
10+ $3.84
25+ $3.80
49+ $3.75
74+ $3.70
99+ $3.47
199+ $3.43
249+ $3.38
499+ $3.33
999+ $3.24
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 15mm
D 35mm
B 11mm
r<sub>s</sub> min 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 8.6 kN
C<sub>or</sub> 3.6 kN
C<sub>u</sub> 0.279 kN
f<sub>0</sub> 12.7 kN
Grease 19000 rpm
Oil 23000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 19mm
D<sub>a</sub> Max. 31mm
r<sub>as</sub> Max. 0.6mm
Weight 0.045 kg
