SKU: 6202/VK2415-SKF

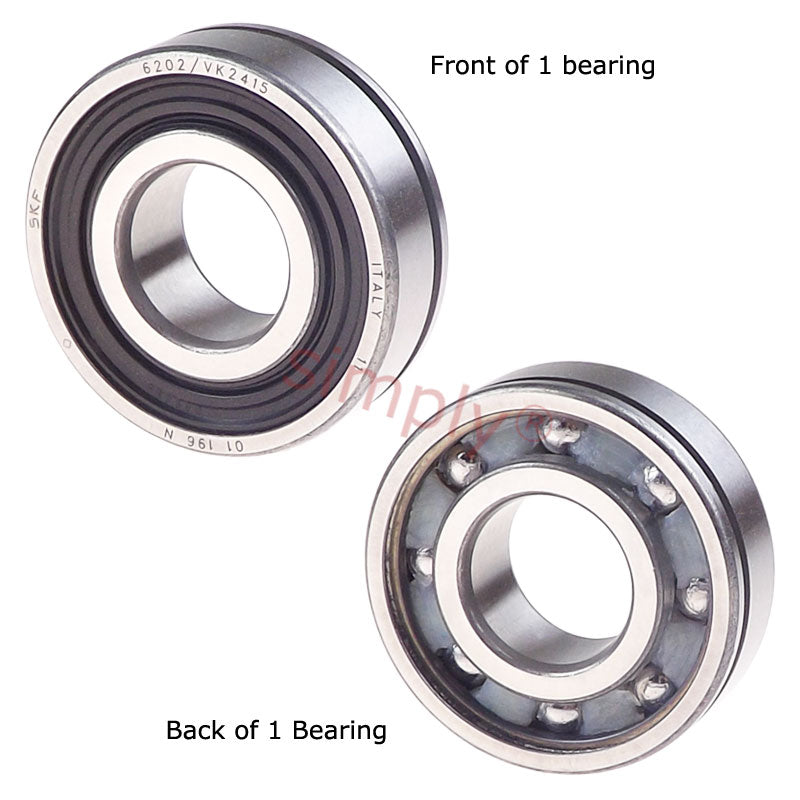

SKF 6202VK2415 Open Deep Groove Ball Bearing 15x35x11mm
SKF 6202VK2415 Open Deep Groove Ball Bearing 15x35x11mm
Regular price
$18.32
ex VAT
Regular price
Sale price
$18.32
ex VAT
In stock
Price Break
4+
$12.28
10+
$11.59
20+
$11.45
30+
$11.31
50+
$11.17
75+
$11.04
100+
$10.35
200+
$10.21
250+
$10.07
500+
$9.93
1000+
$9.66
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- None
- Clearance:
- *Standard
Technical
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| B | 11mm |
| C | 8.06kN |
| Co | 3.75kN |
| Pu | 0.16kN |
| Referance Speed | 43000 r/min |
| Limiting Speed | 22000 r/min |
| d1 | 21.7mm |
| D2 | 30.5mm |
| r1r2min | 0.6mm |
| damin | 19.2mm |
| damax | 21.6mm |
| Damax | 30.8mm |
| ramax | 0.6mm |
| Calculationfactor f0 | 13 |
| Weight | 0.048kg |
