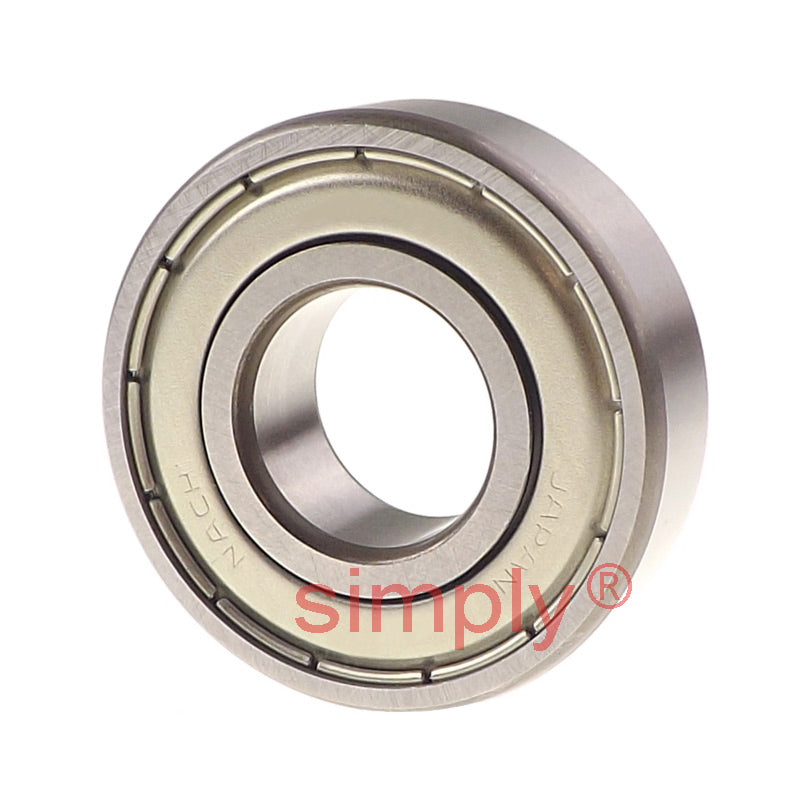

• NACHI 6202ZZE Metal Shielded Deep Groove Ball Bearing 15x35x11mm
  • Nachi
1 2

SKU: 6202-ZZE-NACHI

NACHI 6202ZZE Metal Shielded Deep Groove Ball Bearing 15x35x11mm

NACHI 6202ZZE Metal Shielded Deep Groove Ball Bearing 15x35x11mm
$6.19 ex VAT
$6.19 ex VAT
Sale Sold out

Equivalent to: 6202ZZ 62022Z 6202.2Z 6202KDD 6202DD 62022ZR 6202FF

In stock

Price Break
5+ $4.15
9+ $3.91
19+ $3.87
29+ $3.82
49+ $3.77
74+ $3.73
99+ $3.49
199+ $3.45
249+ $3.40
499+ $3.35
999+ $3.26

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance.
Benefits: High-running accuracy and high-speed operation.
Brand / Quality:
Nachi - High Quality
Inside Diameter:
15mm
Outside Diameter:
35mm
Width:
11mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Technical
Inside Diameter d 15mm
Outside Diameter D 35mm
Width B 11mm
Min radius r 0.6mm
Dynamic load 7650 kN
Static load 3700 kN
Max speed 20000 rpm
da min 20mm
Da max 30mm
ra max 0.6mm
Weight 0.045 kg
