SKU: 6202DDUNR-NSK

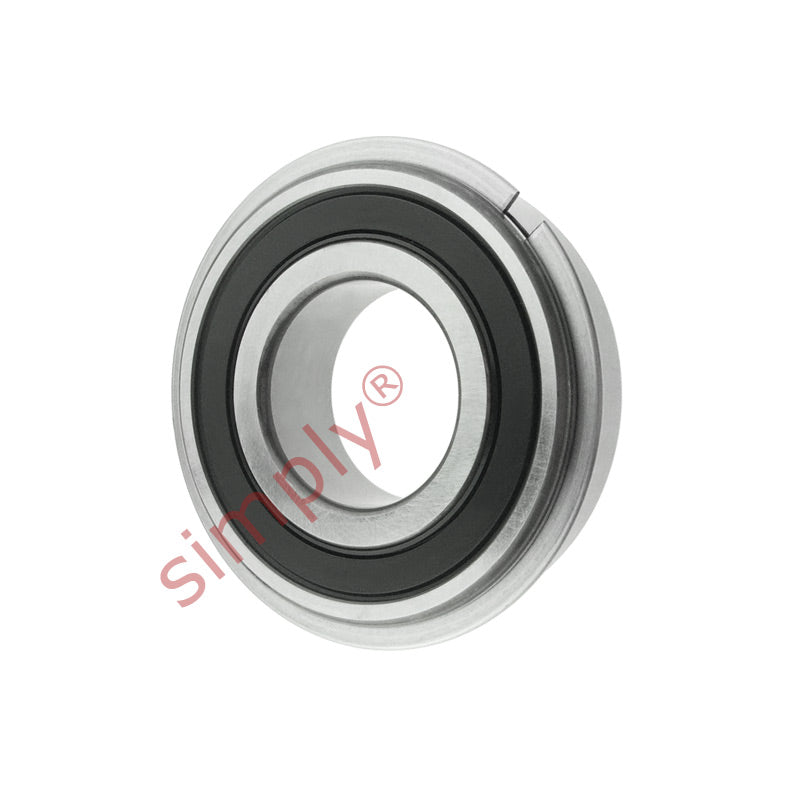

NSK 6202DDUNR Rubber Sealed Deep Groove Ball Bearing With Snap Ring 15x35x11mm

Name: NSK 6202DDUNR Rubber Sealed Deep Groove Ball Bearing With Snap Ring 15x35x11mm
Brand: NSK
SKU: 6202DDUNR-NSK
Price: 10.23 USD
Availability: InStock

$10.23 ex VAT

Sale Sold out

Equivalent to: 6202DUNR

In stock

Price Break

4+ $6.85

10+ $6.47

20+ $6.39

30+ $6.31

50+ $6.24

75+ $6.16

100+ $5.78

200+ $5.70

250+ $5.62

500+ $5.54

1000+ $5.39

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: NSK - High Quality
Inside Diameter:: 15mm
Outside Diameter:: 35mm
Width:: 11mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard
Snap Ring:: Snap Ring

Technical

d	15mm
D	35mm
B	11mm
r min	0.6mm
Dynamic load Cr	7650 N (780 kgf)
Static load Cor	3750 N (380 kgf)
Factor	13.2
Speed in grease	14000 rpm
Speed in oil	24000 rpm
a max	2.06mm
b min	1.35mm
D1 max	33.17mm
ro max	0.4mm
rN min	0.5mm
D2 max	39.7mm
f max	1.12mm
da2 min	19mm
da2max	20.5mm
Da2max	31mm
ra max	0.6mm
Dx min	40.5mm
Cy max	2.9mm
Weight	0.045 kg
