SKU: 6203-2NSE/NR-NACHI

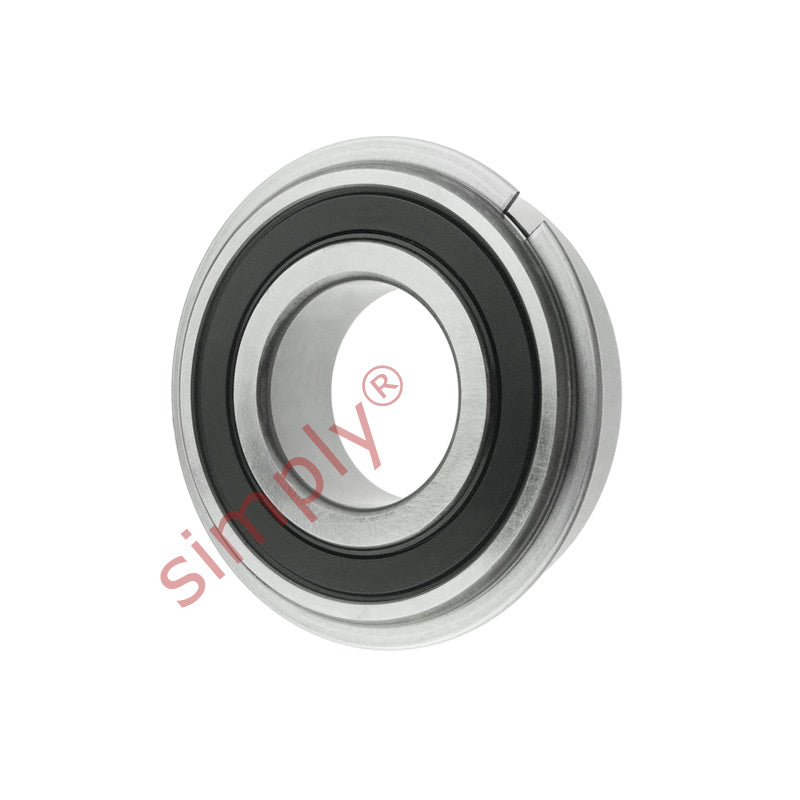

NACHI 62032NSENR Contact Rubber Sealed Deep Groove Ball Bearing with Snap Ring 17x40x12mm
NACHI 62032NSENR Contact Rubber Sealed Deep Groove Ball Bearing with Snap Ring 17x40x12mm
Regular price
$19.68
ex VAT
Regular price
Sale price
$19.68
ex VAT
Equivalent to: 6203NSENR 6203RSNR 62032RSNR 62032RSHNR 6203RSRNR
In stock
Price Break
5+
$13.18
9+
$12.44
19+
$12.29
29+
$12.14
49+
$11.99
74+
$11.85
99+
$11.11
199+
$10.96
249+
$10.81
499+
$10.66
999+
$10.37
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 40mm |
| Width B | 12mm |
| Min radius r | 0.6mm |
| Dynamic load | 9550 kN |
| Static load | 4800 kN |
| Max speed | 18000 rpm |
| da min | 22mm |
| Da max | 35mm |
| ra max | 0.6mm |
| Weight | 0.065 kg |
