SKU: 6203-2RS/C3-CDX

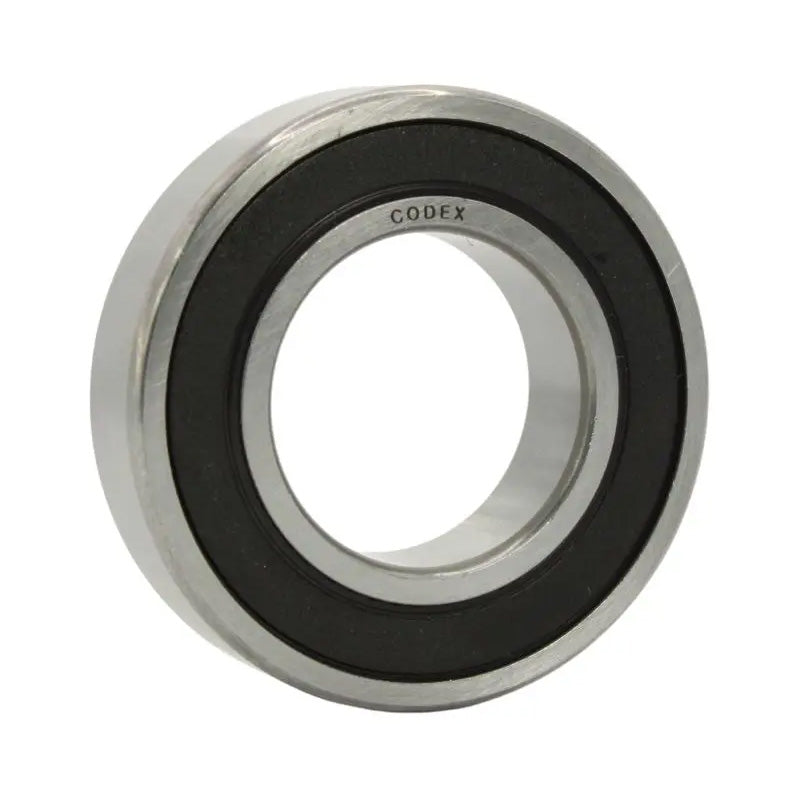

Codex 62032RSC3 Rubber Sealed Deep Groove Ball Bearing 17x40x12mm
Codex 62032RSC3 Rubber Sealed Deep Groove Ball Bearing 17x40x12mm
Regular price
$5.89
ex VAT
Regular price
Sale price
$5.89
ex VAT
Equivalent to: 62032RSC3 62032RSHC3 62032RS1C3 62032RSRC3 62032RSLC3 6203LFSC3 6203EEC3 6203DUC3 6203LLUC3 EL172RSC3 6203PPC3
In stock
Price Break
4+
$3.94
10+
$3.72
20+
$3.67
30+
$3.63
50+
$3.59
75+
$3.54
100+
$3.32
200+
$3.28
250+
$3.23
500+
$3.19
1000+
$3.10
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| Dynamic load C | 9.95 kN |
| Static load Co | 4.75 kN |
| Fatigue load limit Pu | 0.2 |
| Reference speed | 38000 rpm |
| Limiting speed | 12000 rpm |
| Weight | 0.065 kg |
| d1 | -mm |
| D2 | 35mm |
| r1r2 | 0.6mm |
| da min | 21.2mm |
| Da max | 35.8mm |
| ra max | 0.6mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 13 |
