SKU: 6203-2RSTFP-MB

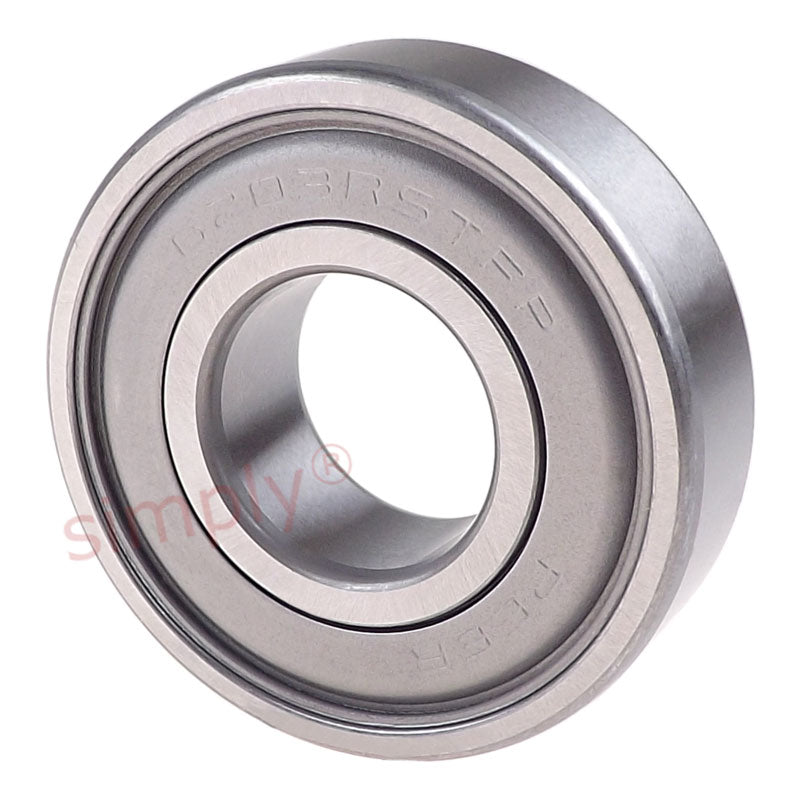

Major Brand 62032RSTFP TURFXTREME Lawn and Garden XTREME Rubber Sealed with Metal Shield Deep Groove Ball Bearing 17x40x12mm - Allow 2-3 Days
Major Brand 62032RSTFP TURFXTREME Lawn and Garden XTREME Rubber Sealed with Metal Shield Deep Groove Ball Bearing 17x40x12mm - Allow 2-3 Days
Equivalent to: 6203-2RSTFP
Out of stock
Share this product
Description
Description
PEER TURFXTREMEâ„¢
Longer bearing life results in:
- Less customer maintenance and reduced cost of machine ownership
- Reduced OEM warranty exposure and cost
- Strengthened OEM product and brand integrity
- Contact sealed for life - Contamination prevention
- High quality through hardened bearing steel - Improves fatigue life
- Precision ground and superfinished raceways - Reduces vibration and extends life
- Premium polyurea thickened grease - Excellent high/low temperature capability and extends grease life
- Increased grease fill - Improves corrosion protection during machine idle periods
- Premium nitrile seal material composition - Longer seal life due to improved high temperature and wear resistance
- Optimised seal design - Maintains seal integrity when exposed to external force due to wrapping debris and pressure washing
- Precision ground seal contact surface - Smooth surface finish results in longer seal lip life and improved ring concentricity which results in increased seal effectiveness
- Increased seal lip contact - Improves contaminant exclusion in Xtreme environments
- Heavy gauge steel shroud - Protects seal from large solid contaminants(stones, pebbles, dirt)
Seal Type: RSTFP
Typical Application & Speed Limit: High Contaminted appliance applications - Basic BRG. Size < 205: 3500 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 2000 RPM
Typical Environment: Heavy dust, light/moderate water exposure
Contamination Exclusion: Severe
- Brand / Quality:
- PEER - High Quality
- Inside Diameter:
- 17mm = 0.669 inch
- Outside Diameter:
- 40mm = 1.574 inch
- Width:
- 12mm = 0.472 inch
- Seals / Shields:
- Rubber Sealed with Metal Shield
- Clearance:
- * Standard
Technical
Technical

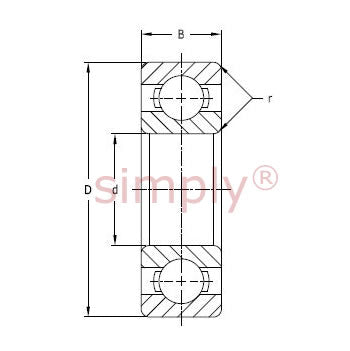

| d | 0.6693 inch = 17mm |
|---|---|
| D | 1.5748 inch = 40mm |
| B | 0.4724 inch = 12mm |
| Max Shaft & Housing Raduis r | 0.024 inch = 0.6mm |
| Seal Type | RSTFP Seal |
