SKU: 6203-2Z-EU

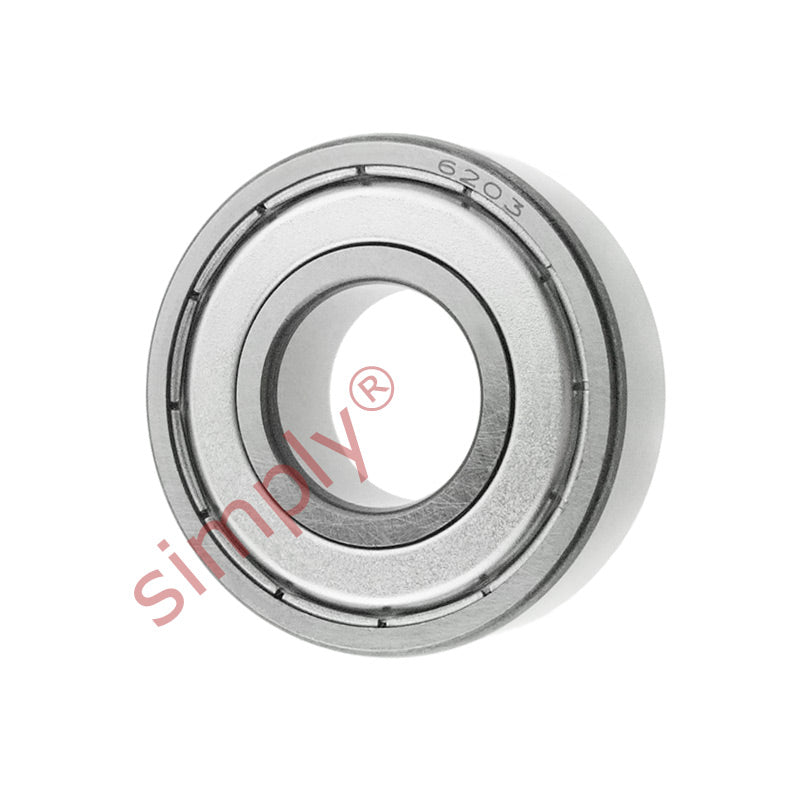

6203ZZ Budget Metal Shielded Deep Groove Ball Bearing 17x40x12mm
Equivalent to: 6203ZZE 6203ZZ 6203.2Z 6203KDD 6203DD 6203FF 62032ZR 6203ZZE 6203ZZ 62032ZR 62032RS2
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| r min | 0.6mm |
| Dynamic load Cr | 9.55 kN |
| Static load Cor | 4.8 kN |
| Speed in grease | 17000 rpm |
| Speed in oil | 21000 rpm |
