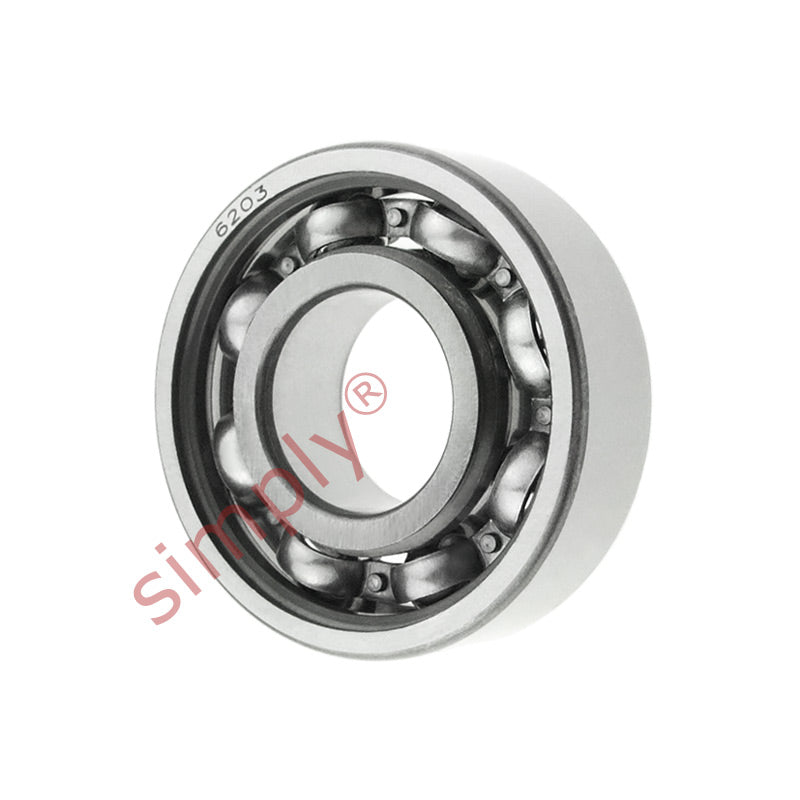

6203 Budget Open Type Deep Groove Ball Bearing 17x40x12mm
6203 Budget Open Type Deep Groove Ball Bearing 17x40x12mm
Regular price
$3.57
ex VAT
Regular price
Sale price
$3.57
ex VAT
In stock
Price Break
4+
$2.39
10+
$2.26
20+
$2.23
30+
$2.20
50+
$2.18
75+
$2.15
100+
$2.02
201+
$1.99
250+
$1.96
500+
$1.94
1000+
$1.88
Quantity
Couldn't load pickup availability
Description
Description
|
Budget Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| r min | 0.6mm |
| Dynamic load Cr | 9.55 kN |
| Static load Cor | 4.8 kN |
| Speed in oil | 21000 rpm |
