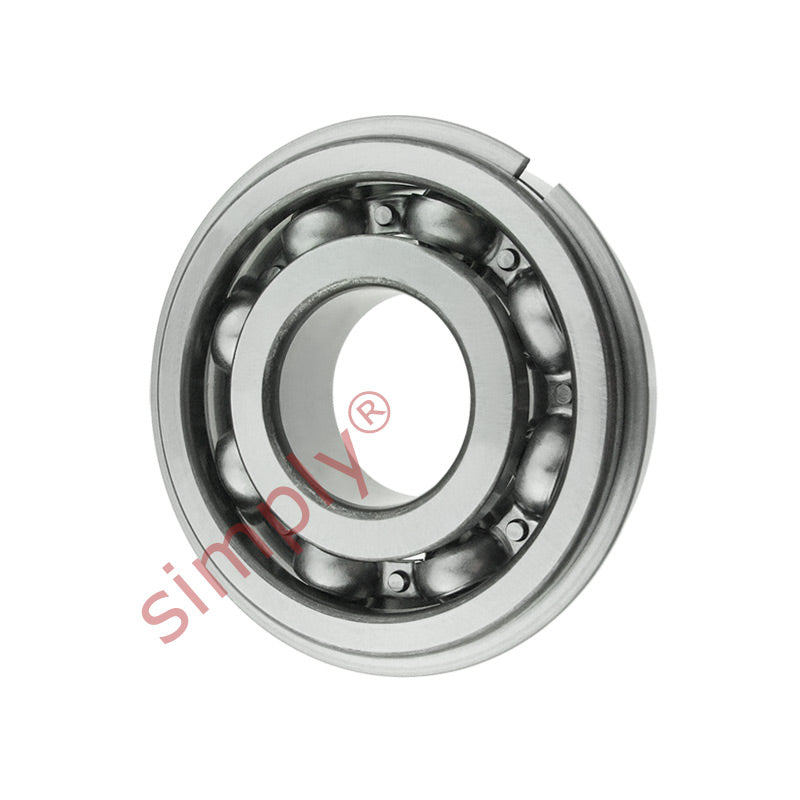

• 6203NR Deep Groove Ball Bearing with Snap Ring 17x40x12mm
1 1

SKU: 6203NR-MB

6203NR Deep Groove Ball Bearing with Snap Ring 17x40x12mm

6203NR Deep Groove Ball Bearing with Snap Ring 17x40x12mm
$17.54 ex VAT
$17.54 ex VAT
Sale Sold out

In stock

Price Break
10+ $11.75
19+ $11.09
29+ $10.96
39+ $10.83
49+ $10.69
74+ $10.56
99+ $9.90
199+ $9.77
249+ $9.64
499+ $9.51
999+ $9.24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Snap ring location in housings, Rubber and Metal Sealed versions available

Brand / Quality:
Major Brand - High Quality
Inside Diameter:
17mm
Outside Diameter:
40mm
Width:
12mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 17mm
D 40mm
B 12mm
Dyamic load C 9.95 kN
Static load Co 4.75 kN
Fatigue load limit Pu 0.2 kN
Reference speed 38000 rpm
Limiting speed 24000 rpm
Mass 0.065 kg
d1 24.5mm
d2 32.7mm
D2 35mm
r1r2 min 0.6mm
da min 21.2
