SKU: 6203NR-SKF

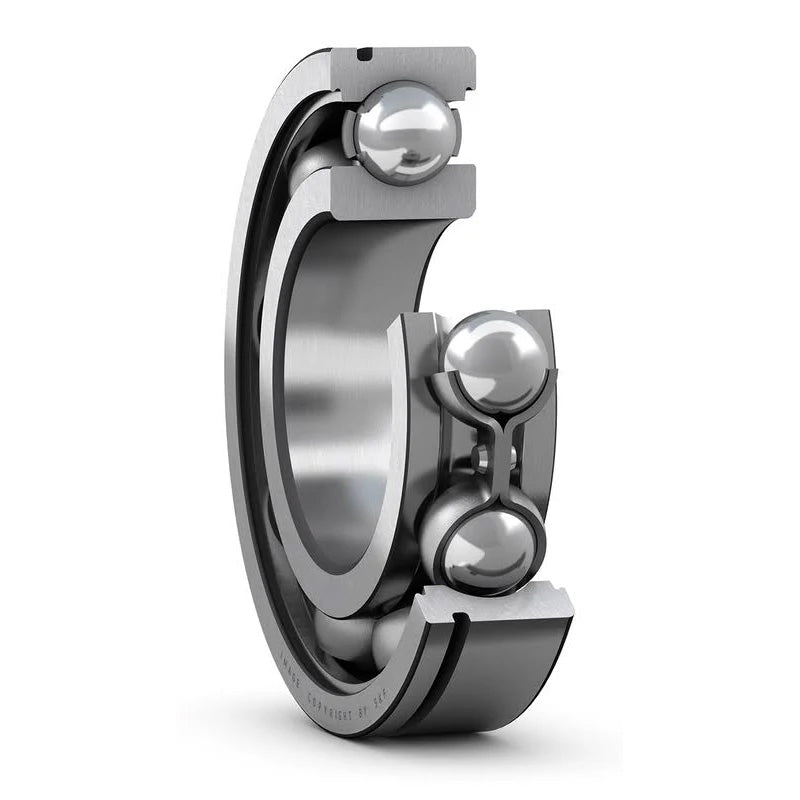

SKF 6203NR Open Type Snap Ring Deep Groove Bearing 17x40x12mm - Allow 2-3 Days
SKF 6203NR Open Type Snap Ring Deep Groove Bearing 17x40x12mm - Allow 2-3 Days
Regular price
$7.34
ex VAT
Regular price
Sale price
$7.34
ex VAT
In stock
Price Break
4+
$5.46
10+
$5.24
20+
$5.13
30+
$4.97
50+
$4.86
75+
$4.58
100+
$3.86
200+
$3.86
250+
$3.86
500+
$3.86
1000+
$3.86
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| Dynamic load C | 9.95 kN |
| Static load Co | 4.75 kN |
| Fatigue load limit Pu | 0.2 kN |
| Reference speed | 38000 rpm |
| Limiting speed | 24000 rpm |
| Weight | 0.065kg |
| Snap ring | SP 40 |
| d1 | 24.5mm |
| D2 | 35mm |
| D3 | 38.1mm |
| D4 | 44.6mm |
| b | 1.35mm |
| f | 1.12mm |
| C | 2.06mm |
| r1r2 min | 0.6mm |
| ro max | 0.4mm |
| da min | 21.2mm |
| Da max | 35.8mm |
| Db min | 46mm |
| ba min | 1.5mm |
| Ca max | 3.18mm |
| ra max | 0.6mm |
| Calc Factor kr | 0.025 |
| fo | 13 |
