SKU: 6203VVC3-NSK
NSK 6203VVC3 Non Contact Rubber Sealed Deep Groove Ball Bearing 17x40x12mm
NSK 6203VVC3 Non Contact Rubber Sealed Deep Groove Ball Bearing 17x40x12mm
Regular price
$10.88
ex VAT
Regular price
Sale price
$10.88
ex VAT
In stock
Price Break
4+
$7.29
10+
$6.88
20+
$6.80
30+
$6.72
50+
$6.63
75+
$6.55
100+
$6.14
200+
$6.06
250+
$5.98
500+
$5.90
1000+
$5.73
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Low Friction
- Clearance:
- C3

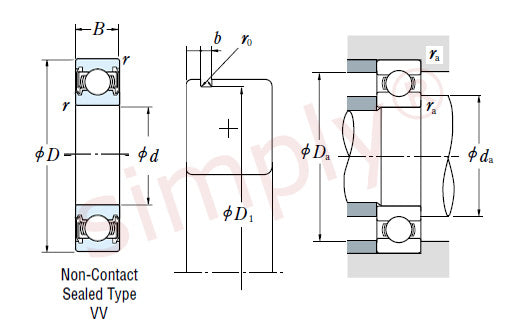

Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| r min | 0.6mm |
| Dynamic load Cr | 9550 N (975 kgf) |
| Static load Cor | 4800 N (490 kgf) |
| Factor | 13.2 |
| Speed in grease | 17000 rpm |
| Speed in oil | 20000 rpm |
| Weight | 0.067 kg |
