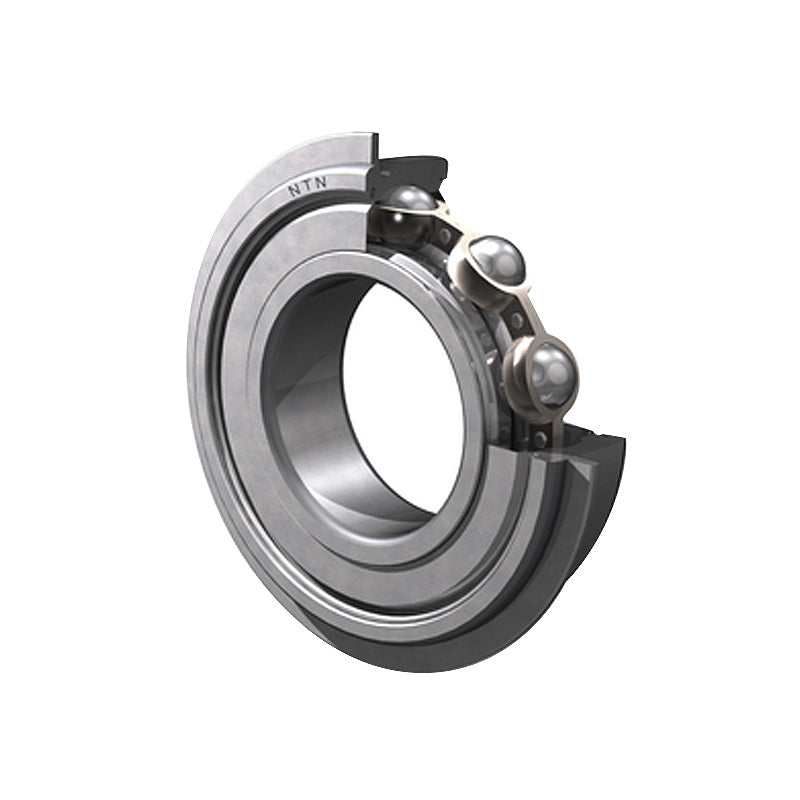

• NTN 6203ZZNR/5K Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 17x40x12mm
1 1

SKU: 6203ZZNR/5K-NTN

NTN 6203ZZNR/5K Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 17x40x12mm

NTN 6203ZZNR/5K Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 17x40x12mm
$12.12 ex VAT
$12.12 ex VAT
Sale Sold out

Equivalent to: 6203ZZNRCM 6203ZZNR 6203ZZNR 62032ZNR 6203ZZNR 62032ZRNR 6203ZZENR 6203FFNR 6203DDNR 6203DDCNR 6203KDDCNR EL172ZNR EL17ZZNR 9103KDDG 4773L03 103KSFFG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
HEAD_SKZN
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Brand / Quality:
NTN - High Quality
Inside Diameter:
17mm
Outside Diameter:
40mm
Width:
12mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 17mm
D 40mm
B 12mm
r<sub>s</sub> min 0.6mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 10.6 kN
C<sub>or</sub> 4.6 kN
C<sub>u</sub> 0.355 kN
f<sub>0</sub> 12.8 rpm
Grease 18000 rpm
--- Fitting Dimensions
Oil 21000 rpm
D<sub>1</sub> Max. 38.1mm
a Max. 2.06mm
b Min. 1.35mm
r<sub>o</sub> Max. 0.4mm
