SKU: 6203ZZNR-NSK

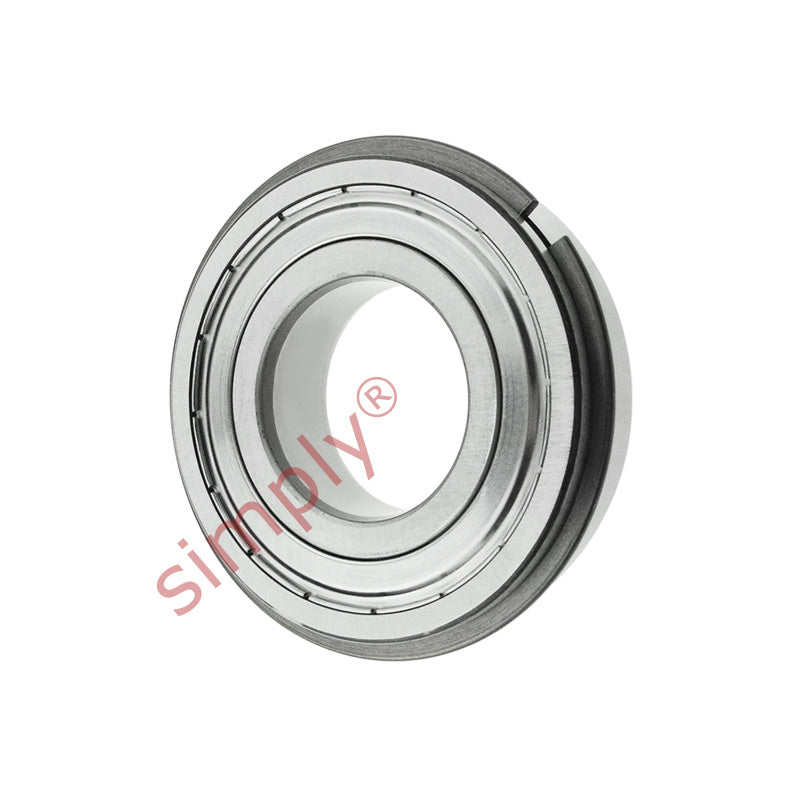

NSK 6203ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 17x40x12mm

Name: NSK 6203ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 17x40x12mm
Brand: NSK
SKU: 6203ZZNR-NSK
Price: 11.91 USD
Availability: InStock

$11.91 ex VAT

Sale Sold out

Equivalent to: 62032ZNR

In stock

Price Break

4+ $7.97

10+ $7.52

20+ $7.43

30+ $7.34

50+ $7.25

75+ $7.16

100+ $6.72

200+ $6.63

250+ $6.54

500+ $6.45

1000+ $6.27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: NSK - High Quality
Inside Diameter:: 17mm
Outside Diameter:: 40mm
Width:: 12mm
Seals / Shields:: Metal Shielded
Clearance:: * Standard
Snap Ring:: Snap Ring

Technical

d	17mm
D	40mm
B	12mm
r min	0.6mm
Dynamic load Cr	9550 N (975 kgf)
Static load Cor	4800 N (490 kgf)
Factor	13.2
Speed in grease	17000 rpm
Speed in oil	20000 rpm
a max	2.06mm
b min	1.35mm
D1 max	38.1mm
ro max	0.4mm
rN min	0.5mm
D2 max	44.6mm
f max	1.12mm
da2 min	21mm
da2max	23.5mm
Da2max	36mm
ra max	0.6mm
Dx min	45.5mm
Cy max	2.9mm
Weight	0.067 kg
